SUNCO

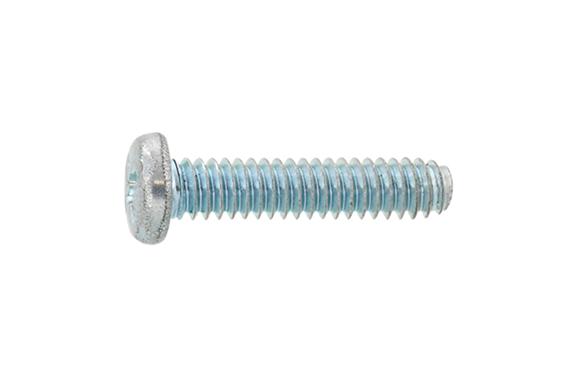

40-S360 # 0-3 (+) S Type Pan Head
Model: 40-S360
Dia range:M1.7～M1.7
Length range:8～8
Iron (or standard).
Trivalent zinc cr+3 color white.
| Nominal thread size | D | H | Thread outer diameter (d) | |||
|---|---|---|---|---|---|---|
| Basic dimension | Tolerance | Basic dimension | Tolerance | Basic dimension | Tolerance | |
| 1.7 | 3.0 | +0.05 -0.1 | 0.9 | ±0.05 | 1.66 | 0 -0.06 |
