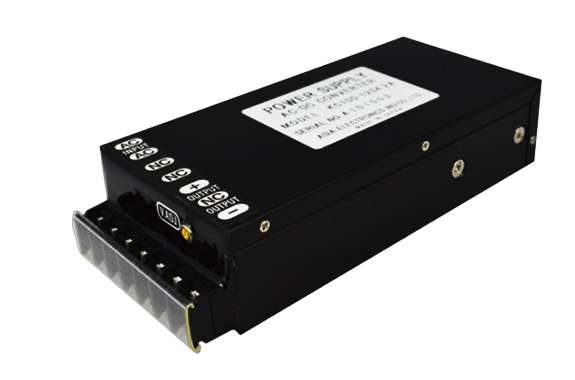

ASIA ELECTRONICS KC SERIES DC-DC CONVERTERS

Manufacturer: ASIA ELECTRONICS
Model: KC Series

Features

Input Voltage, Range	DC12, 24, 48, 100, 140V (See Table 1) (at Ta: 25℃, Full Load, Nominal Vin)
Output Voltage, Current	See Table 1
Output Voltage Range	±5% Adjustable
Efficiency	See Table 1
Line Regulation	±0.3% max. (at Vin Range)
Load Regulation	±0.5% max.
±1% max.	(3.3, 5V Output only) (0～100% Load)
Reflected Input Ripple, Noise	(5% Vin) Vp-p max.
Output Ripple	40mVp-p max.
Output Noise	0.5% typ. (output ±100mV) p-p max.
Short Circuit Protection	Built-in, Auto-restart (See Fig. 2)
Over Voltage Protection	115%~140% Output Voltage
Temperature Coefficient	0.02%/°C max.
Operating Ambient Temp.	−40°C to +85°C (See Fig. 1)
Max. Case Temperature	+105°C
Storage Temperature	−55°C to +125°C
Isolation Voltage	AC2000V one minute
	(Input－Output－Case)
Isolation Impedance	100MΩ min. (at DC1000V) (Input－Output－Case)
Weight	35g max.
Humidity	20～95% RH
Shock	490m/s² (11msec 3 directions)
Vibration	10～55Hz 98m/s² (30 minutes 3 directions)
Surface Structure	Aluminum Case
MTBF	400,000H (Ta: 25℃, 80% Load, Nominal Vin)
Warranty	5 years

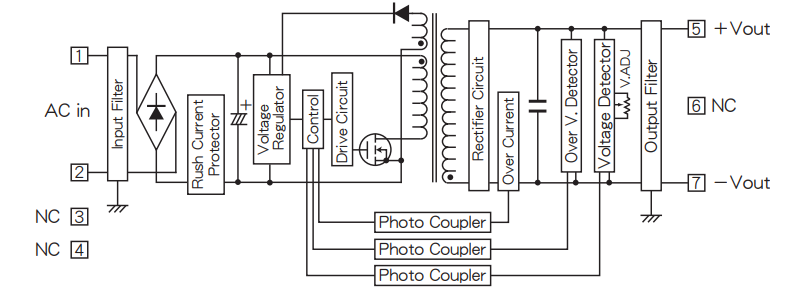

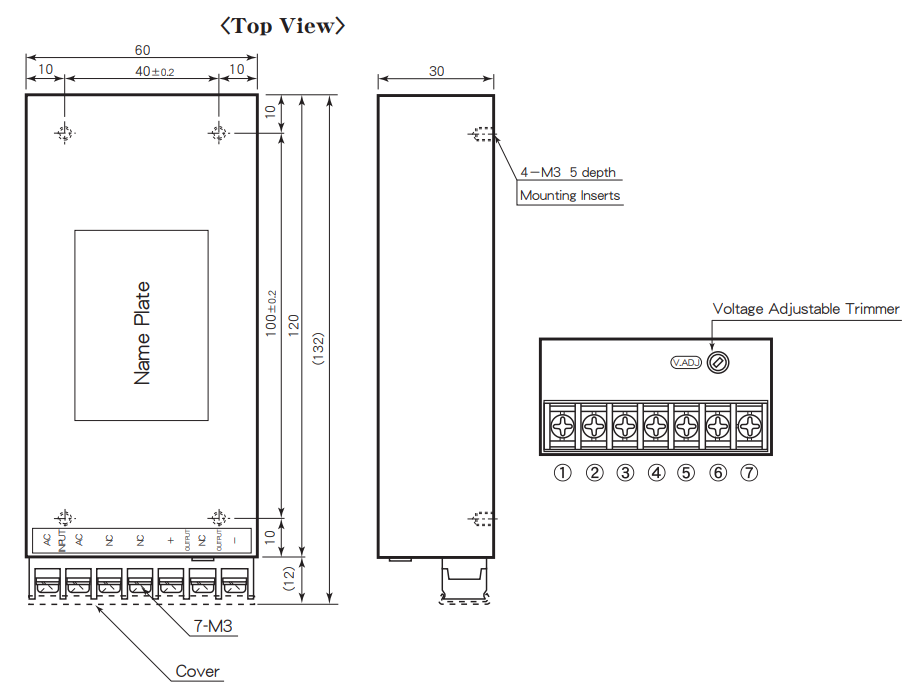

Model Number	Input Volt. (Range) (V. AC)	Output Voltage (V. DC)	Output Current (A)	Efficiency 80% Load (%)typ.
KC100− 5S 10A	100 (85~132)	5	10	85
KC100− 12S 4.2A		12	4.2	86
KC100− 15S 3.3A		15	3.3	86
KC100− 24S 2.1A		24	2.1	86
KC200− 5S 10A	200 (175~264)	5	10	85
KC200− 12S 4.2A		12	4.2	87
KC200− 15S 3.3A		15	3.3	87
KC200− 24S 2.1A		24	2.1	87
KCW160− 5S 10A	160 (85~264)	5	10	85
KCW160− 12S 3.3A		12	3.3	86
KCW160− 15S 2.4A		15	2.4	86
KCW160− 24S 1.5A		24	1.5	86
