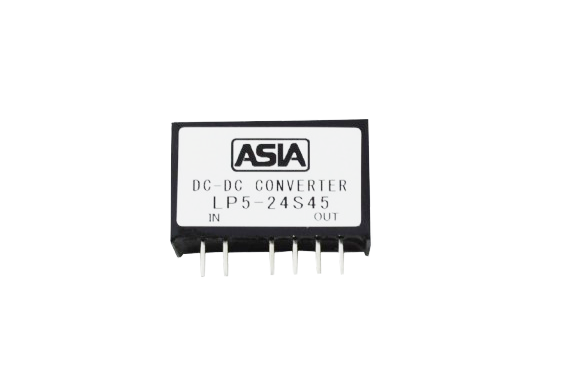

ASIA ELECTRONICS LP SERIES DC to DC CONVERTERS
Manufacturer: ASIA ELECTRONICS
Model: LP Series
Features
- SIP Package
- Input-Output Isolation
- Each Output Isolation
- Wide Input Voltage Range
- High Reliability
- Low Cost
- Operating Ambient Temp. −30℃～+71℃
- Max. Case Temperature +90℃
- Conformity to RoHS2 Directive
- Not built-in aluminum and tantalum electrolytic capacitor
Specifications
■General characteristics
| Input Voltage, Range | DC5, 12, 24, 48V (See Table 1) |
| Output Voltage, Current | See Table 1 |
| Output Voltage Accuracy | ±3% |
| Efficiency | See Table 1 |
| Line Regulation | ±1.5% max. (at Vin Range) |
| Load Regulation | ±5% max. (min. Load~max. Load) |
| Reflected Input Ripple and Noise | (3% Vin)Vp-p max. |
| Output Ripple | 100mVp-p max. |
| Output Noise | 300mVp-p max. |
| Short Circuit Protection | Built-in, Auto-restart (See Fig. 2) |
| Temperature Coefficient | 0.06%/°C max. |
| Operating Ambient Temp. | –30°C～+71°C (See Fig. 1) |
| Max. Case Temperature | +90°C |
| Storage Temperature | –40°C～+100°C |
| Isolation Voltage | AC500V one minute (Input→Output→Case) |
| Isolation Impedance | 100MΩ min. (at DC1000V) (Input→Output→Case) |
| Switching Frequency | 360kHz typ. |
| Weight | 8g max. |
| Humidity | 20～95% RH |
| Shock | 490m/s² (11msec 3directions) |
| Vibration | 10~55Hz 98m/s² (30minutes 3directions) |
| Surface Structure | Plastic Case |
| Soldering Conditions (Soldering iron) | 360°C, for 5 seconds max. |
| MTBF | 1,500,000H (Ta : 25°C, 80% Load, Nominal Vin) |
| Warranty | 5 years |

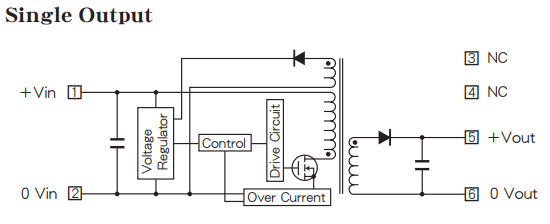

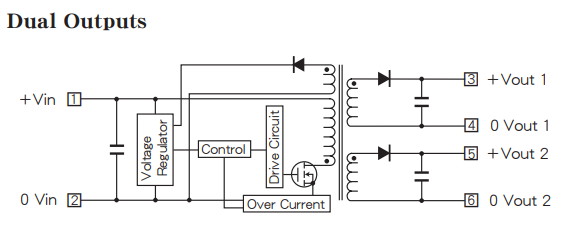

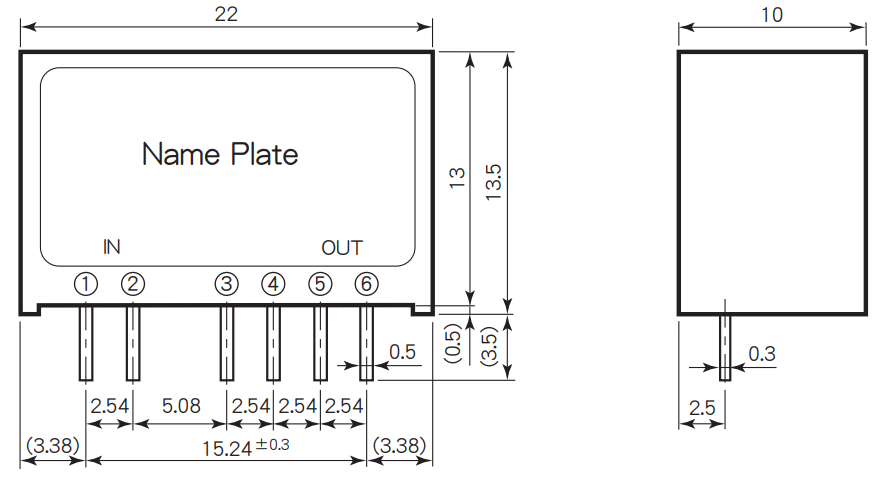

■ Pin Outs & Dimensions (±0.5mm)
| Pin out | |||
|---|---|---|---|
| Single Output | Dual Outputs | ||
| ① | +Vdc in | ① | +Vdc in |
| ② | 0 Vdc in | ② | 0 Vdc in |
| ③ | No Connection | ③ | +Vdc out 1 |
| ④ | No Connection | ④ | 0 Vdc out 1 |
| ⑤ | +Vdc out | ⑤ | +Vdc out 2 |
| ⑥ | 0 Vdc out | ⑥ | 0 Vdc out 2 |

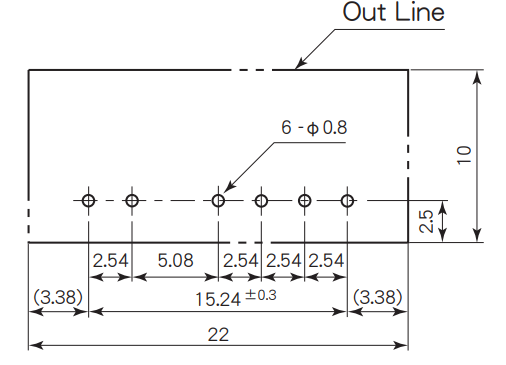

■ Hole Configurations on PCB (Top View)
■ Selection Guide (Table 1)
| Model Number | Input Volt. (Range) (V. DC) | Output Volt. (V. DC) | Output Current (mA) | Efficiency (Typical) (%) | ||
|---|---|---|---|---|---|---|
| out 1 | out 2 | out 1 | out 2 | |||
| LP 5－5S200 | 5 (4.5～9) | 5 | － | 20～200 | － | 65 |
| LP 5－12S85 | 12 | － | 8～85 | － | 70 | |
| LP 5－15S70 | 15 | － | 7～70 | － | 70 | |
| LP 5－24S45 | 24 | － | 4～45 | － | 70 | |
| LP 5－5D100 | 5 | 5 | 10～100 | 10～100 | 65 | |
| LP 5－12D45 | 12 | 5 | 5～45 | 5～45 | 70 | |
| LP 5－15D35 | 15 | 5 | 4～35 | 5～35 | 70 | |
| LP 5－5S12S | 5 | 12 | 10～100 | 5～50 | 68 | |
| LP 5－5S12S | 5 | 15 | 10～100 | 4～40 | 68 | |
| LP12-5S200 | 12 (9～18) | 5 | — | 20~200 | — | 70 |
| LP12-12S85 | 12 | — | 8~85 | — | 75 | |
| LP12-15S70 | 15 | — | 7~70 | — | 75 | |
| LP12-24S45 | 24 | — | 4~45 | — | 75 | |
| LP12-5D100 | 5 | 5 | 10~100 | 10~100 | 70 | |
| LP12-12D45 | 12 | 12 | 5~45 | 5~45 | 75 | |
| LP12-15D35 | 15 | 15 | 4~35 | 4~35 | 75 | |
| LP12-5S12S | 5 | 12 | 10~100 | 5~50 | 72 | |
| LP12-5S15S | 5 | 15 | 10~100 | 4~40 | 72 | |
| LP24-5S200 | 24 (18～36) | 5 | — | 20~200 | — | 70 |
| LP24-12S85 | 12 | — | 8~85 | — | 75 | |
| LP24-15S70 | 15 | — | 7~70 | — | 75 | |
| LP24-24S45 | 24 | — | 4~45 | — | 75 | |
| LP24-5D100 | 5 | 5 | 10~100 | 10~100 | 70 | |
| LP24-12D45 | 12 | 12 | 5~45 | 5~45 | 75 | |
| LP24-15D35 | 15 | 15 | 4~35 | 4~35 | 75 | |
| LP24-5S12S | 5 | 12 | 10~100 | 5~50 | 72 | |
| LP24-5S15S | 5 | 15 | 10~100 | 4~40 | 72 | |
| LP12-5S200 | 48 (36～72) | 5 | — | 20~200 | — | 70 |
| LP12-12S85 | 12 | — | 8~85 | — | 75 | |
| LP12-15S70 | 15 | — | 7~70 | — | 75 | |
| LP12-24S45 | 24 | — | 4~45 | — | 75 | |
| LP12-5D100 | 5 | 5 | 10~100 | 10~100 | 70 | |
| LP12-12D45 | 12 | 12 | 5~45 | 5~45 | 75 | |
| LP12-15D35 | 15 | 15 | 4~35 | 4~35 | 75 | |
| LP12-5S12S | 5 | 12 | 10~100 | 5~50 | 72 | |
| LP12-5S15S | 5 | 15 | 10~100 | 4~40 | 72 | |
