ASIA ELECTRONICS IND.CO.

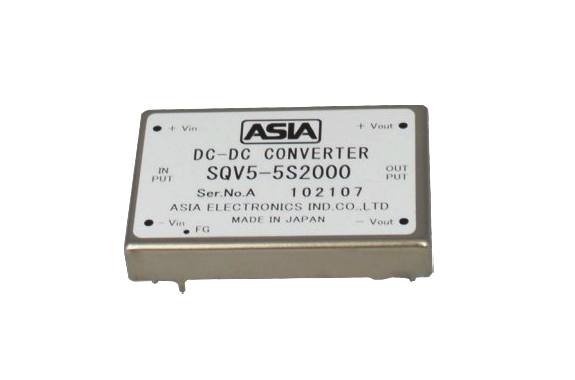

ASIA ELECTRONICS SQV SERIES DC-DC CONVERTERS
Manufacturer: ASIA ELECTRONICS
Model: SQV Series
Features
- High Efficiency 81〜87％
- 8.5mm in Height
- Compact, Light Weight
- Built-in Input Filter
- Wide Input Voltage Range
- Input-Output Isolation
- Low No Load Current
- 5 Sided Metal Shielding
- High Reliability
- Operating Ambient Temperature −40℃〜＋85℃
- Max. Case Temperature +100℃
- Conformity to RoHS2 Directive
- Not built-in aluminum an tantalum electrolytic capacitor
Specifications
◆ General Characteristics
| Input Voltage, Range | DC12, 24, 48, 100, 140V (See Table 1) (at Ta: 25℃, Full Load, Nominal Vin) |
| Output Voltage, Current | See Table 1 |
| Output Voltage Range | ±5% Adjustable |
| Efficiency | See Table 1 |
| Line Regulation | ±0.3% max. (at Vin Range) |
| Load Regulation | ±0.5% max. |
| ±1% max. | (3.3, 5V Output only) (0～100% Load) |
| Reflected Input Ripple, Noise | (5% Vin) Vp-p max. |
| Output Ripple | 40mVp-p max. |
| Output Noise | 0.5% typ. (output ±100mV) p-p max. |
| Short Circuit Protection | Built-in, Auto-restart (See Fig. 2) |
| Over Voltage Protection | 115%~140% Output Voltage |
| Temperature Coefficient | 0.02%/°C max. |
| Operating Ambient Temp. | −40°C to +85°C (See Fig. 1) |
| Max. Case Temperature | +105°C |
| Storage Temperature | −55°C to +125°C |
| Isolation Voltage | AC2000V one minute |
| (Input－Output－Case) | |
| Isolation Impedance | 100MΩ min. (at DC1000V) (Input－Output－Case) |
| Weight | 35g max. |
| Humidity | 20～95% RH |
| Shock | 490m/s² (11msec 3 directions) |
| Vibration | 10～55Hz 98m/s² (30 minutes 3 directions) |
| Surface Structure | Aluminum Case |
| MTBF | 400,000H (Ta: 25℃, 80% Load, Nominal Vin) |
| Warranty | 5 years |

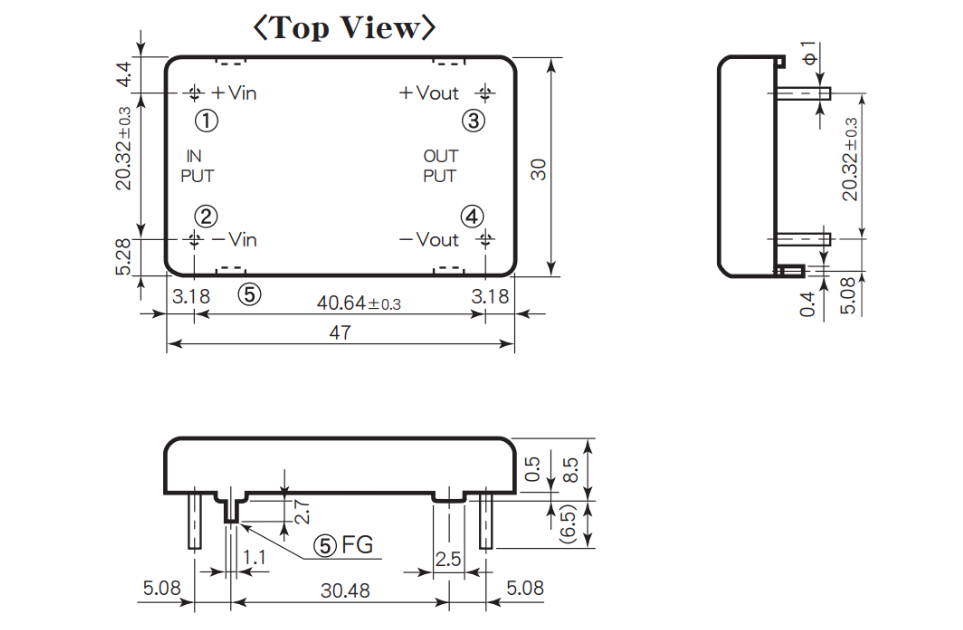

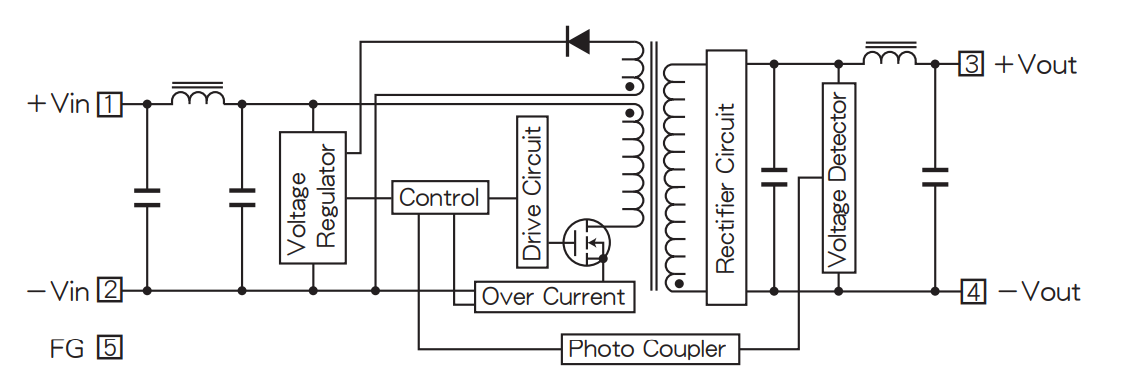

◆Pin Outs & Dimensions (±0.5mm)
| ① | + Vdc in |
| ② | − Vdc in |
| ③ | + Vdc out |
| ④ | − Vdc out |
| ⑤ | Frame Ground |

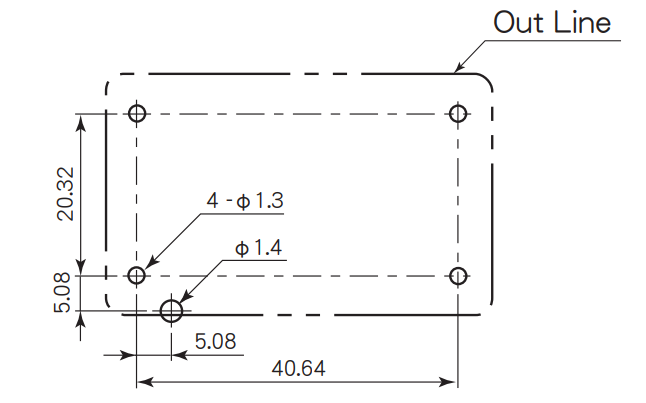

◆Hole Configurations on PCB (Top View)
◆Selection Guide
| Model Number | Input Volt. (Range) (V. DC) | Output Voltage (V. DC) | Output Current (mA) | Efficiency (Typical) (%) |
|---|---|---|---|---|
| SQV 5－3.3 S 3000 | 5 (4.5～9) | 3.3 | 3000 | 81 |
| SQV 5－5 S 2000 | 5 | 2000 | 82 | |
| SQV 5－6 S 1600 | 6 | 1600 | 82 | |
| SQV 5－12 S 800 | 12 | 800 | 85 | |
| SQV 5－15 S 640 | 15 | 640 | 83 | |
| SQV 5－24 S 400 | 24 | 400 | 83 | |
| SQV 5－28 S 350 | 28 | 350 | 83 | |
| SQV 12－3.3 S 3000 | 12 (8～18) | 3.3 | 3000 | 83 |
| SQV 12－5 S 2200 | 5 | 2200 | 85 | |
| SQV 12－6 S 2000 | 6 | 2000 | 85 | |
| SQV 12－12 S 1000 | 12 | 1000 | 87 | |
| SQV 12－15 S 800 | 15 | 800 | 87 | |
| SQV 12－24 S 500 | 24 | 500 | 87 | |
| SQV 12－28 S 400 | 28 | 400 | 87 | |
| SQV 24－3.3 S 3000 | 24 (16～36) | 3.3 | 3000 | 83 |
| SQV 24－5 S 2200 | 5 | 2200 | 85 | |
| SQV 24－6 S 2000 | 6 | 2000 | 85 | |
| SQV 24－12 S 1000 | 12 | 1000 | 87 | |
| SQV 24－15 S 800 | 15 | 800 | 87 | |
| SQV 24－24 S 500 | 24 | 500 | 87 | |
| SQV 24－28 S 400 | 28 | 400 | 87 | |
| SQV 48－3.3 S 3000 | 48 (32～72) | 3.3 | 3000 | 83 |
| SQV 48－5 S 2200 | 5 | 2200 | 85 | |
| SQV 48－6 S 2000 | 6 | 2000 | 85 | |
| SQV 48－12 S 1000 | 12 | 1000 | 87 | |
| SQV 48－15 S 800 | 15 | 800 | 87 | |
| SQV 48－24 S 500 | 24 | 500 | 87 | |
| SQV 48－28 S 400 | 28 | 400 | 87 |
