Manufacture: Azbil Corporation
Model: HMC and HIC

Wetted parts of the body and trim of this control valve are high-performance ceramic for excellent corrosion resistance.

• Many applications for the control of acids, bases, and other corrosive fluids
• Uses a compact, high-output, multi-spring diaphragm motor

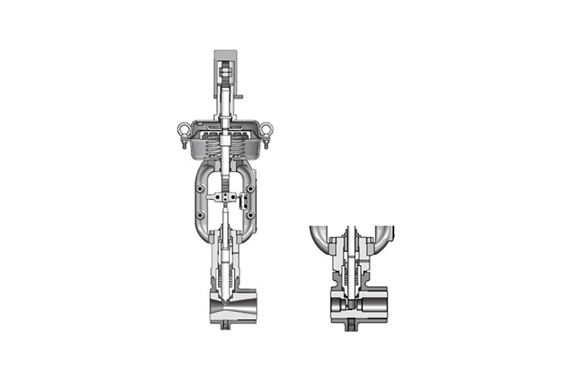

Structural drawing
Valve type	Corrosion-resistant type small size ceramic control valve	Corrosion-/abrasion-resistant type ceramic control valve
Model No.	HMC_ _ _	HIC_ _ _
Size	1″	1″ to 3″
Pressure rating	Max. pressure : 1960kPa	Max. pressure : 1960kPa
End connection	Wafer	Wafer
Body material	Body : 99% Alminum ceramic, silicon carbide ceramic Casing : ductile cast iron, stainless steel	Body : 99% Alminum ceramic, silicon carbide ceramic Casing : ductile cast iron, stainless steel
Trim material	99% Alminum ceramic, silicon carbide ceramic	99% Alminum ceramic, silicon carbide ceramic
Temperature range	0 to 200°C	0 to 200°C
Leakage performance	Less than 2.0% of maximum valve capacity	Less than 1.0 to 1.5% of maximum valve capacity
Cv range	1 to 4	13 to 120
Range ability	30:1	30:1
Application	Hard slurry service as flue-gas desulfurization, drainage, dissolving pulp slurry, and alumina refining unit	Hard slurry service as flue-gas desulfurization, drainage, dissolving pulp slurry, and alumina refining unit
Option	–	–
