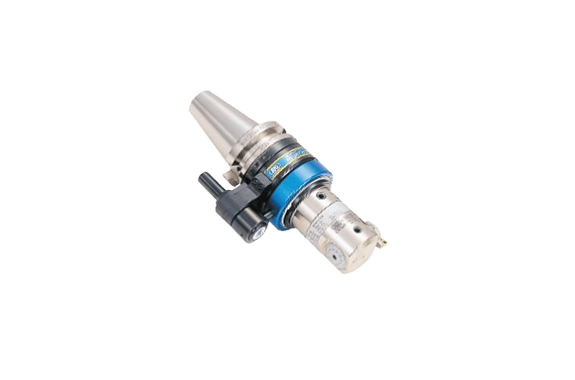

- The Hi-Jet Holder CK Boring Type supports universal use with BIG KAISER CKB6 or CKB7 shanks.
- It features a sturdy one-piece design for universal use with boring, milling, internal turning, and thread-cutting tools.
- Manufacturers use Hi-Jet Holder coolant inducers on machines that do not have coolant through the spindle.
- This design is suitable for automatic tool changers.
BIG DAISHOWA—Americas
BIG DAISHOWA—Americas CK Boring Type Hi-Jet Holder
Manufacturer: BIG DAISHOWA—Americas
Model: CK Boring Type
Features
- Max coolant pressure of 284 PSI is supported for effective cooling performance.
- Speeds up to 6,000 RPM are achievable for high-speed machining operations.
- The positioning ring is adjustable from 0° to 360°; therefore, the coolant connection can be located in any position.
- Three different positioning pins with various dimensions allow simple installation of the stop block on the machine tool.
- Positive groove location guarantees against leakage between the stop block and the positioning pin.
Specifications
◆CK Boring Type
