Manufacturer: BIG DAISHOWA—Americas
Model: Round Chucks

Features

• Round chucks are available in diameters from Ø 90 – 176 mm (Ø 3.543″ – 6.929″) and in body styles that fit a wide variety of applications.
• We supply chucks with single notches, multiple notches, or bushing holes for timing.
• Most body forms allow for turbo-assisted clamping to achieve higher retention forces.

Specifications

◆90 mm

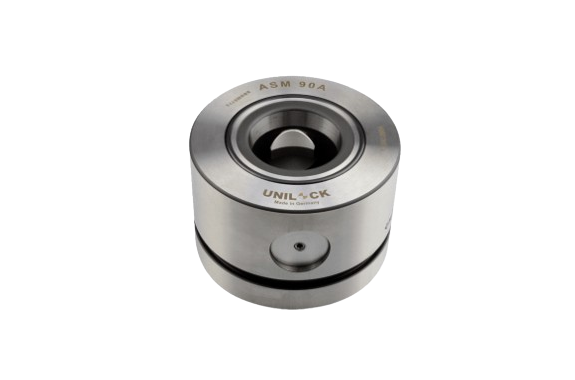

• As one of the smallest round chucks in the UNILOCK family, the ASM 90A specializes in small jobs without creating obstructions.

◆138 mm

• Our 138 mm round chucks easily mount in custom fixture designs, and their versatility makes them our best seller.

◆160 mm

• ISM 160 round chucks are single chuck solutions for the face of 4th and 5th axis rotary tables.

◆168 mm

• • The ESM 168 round chuck can be used on the face of 4th and 5th-axis rotary tables, lathes, or mills where the center of rotation provides a through-hole to bury the workpiece.

◆176 mm

• Due to its size and additional clamping springs, the ESM 176A mm round chuck excels at handling heavyweight fixtures.
