Multi Measuring Instruments Co.

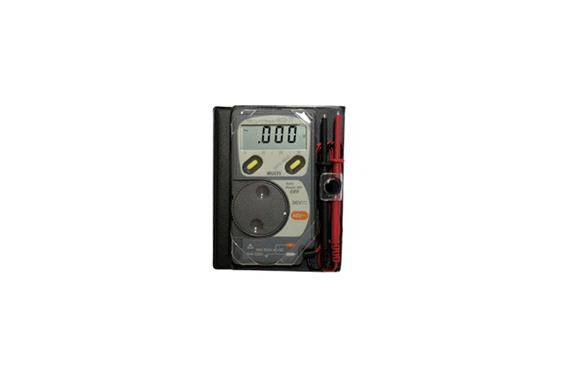

Multi MCD-77 Pocket Multimeter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCD-77
Features
Dedicated to voltage measurement Safe tester rod to prevent
short circuit with
notebook type mobile case
Measurment Specifications
| Measurement Items | Measuring range | accuracy |
| AC Voltage | 3.200V／32.00V／320.0V／500V | ±(2.3%rdg+6dgt) |
| DC voltage | 320.0mV | ±(1.3%rdg+3dgt) |
| 3.200V | ±(0.7%rdg+3dgt) | |
| 32.00V／320.0V／500V | ±(1.3%rdg+3dgt) |
Specifications
| function | Auto range switching, over display, battery voltage low indication, auto power off, data hold |
|---|---|
| Sample Rate | 2 times/sec |
| power | LR-44×2 |
| Dimensions and Weight | W60×H110×D9.5mm Approx. 60g (excluding case) |
| accessory | Batteries, notebook cases |
