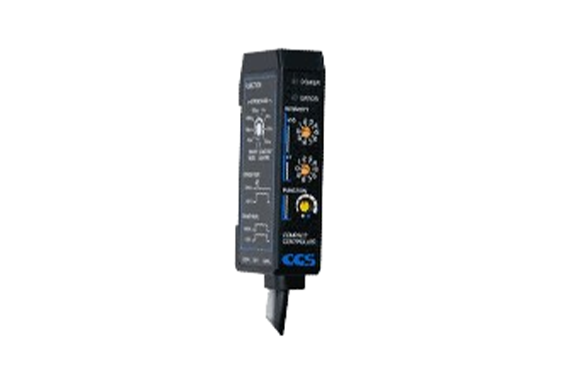

CCS CC-ST-1024 LED Light Controller
Manufacturer: CCS Inc.
Model: CC-ST-1024
Features
- This Controller can be used for LED Light Units with an input voltage of 24 V within a total power consumption of 10 W.
- It measures 16 x 32.5 x 75 mm (width x depth x height).
- LED Light Cable length: 1000 mm
- 24 VDC Input Cable length: 2000 mm
Specifications
| Dimensions | W 16 mm x D 32.5 mm x H 75 mm |
|---|---|
| Applicable Light Unit (output ratings) | 24 V, 10 W (rating) |
| Number of channels | 1 |
| Drive method | Constant lighting |
| Intensity control method | PWM control, Lighting time control |
| PWM frequency | 100 kHz |
| Output voltage | 24VDC |
| Output current | 0.42 A |
| Case material | ABS |
| Over current protection | Yes |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (No condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (No condensation) |
| Cooling method | Natural air cooling |
| Weight | 80 g max. |
| Accessories | Instruction Guide x 1, Flat-blade screwdriver x 1 |

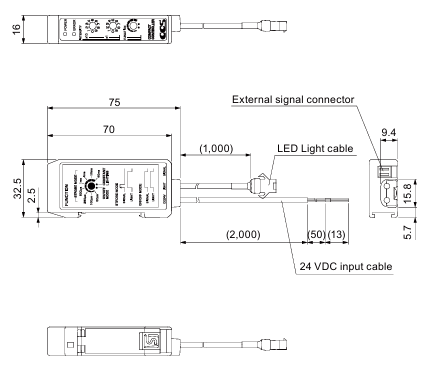

Dimensions (mm)
