CCS Inc.
CCS FPQ3-20BL Low-Angle Square
Manufacturer: CCS Inc.
Model: FPQ3-20BL
Feature
- High-Output, Square, Low-Angle Lights.
- This Light Unit emits blue light and measures 20 x 20 x 23 mm (width x depth x height).
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 465 nm typ. |
| Dimensions | W 20 mm x D 20 mm x H 23 mm |
| Input voltage | 24VDC |
| Power consumption | 2.6 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, EN62471 (Exempt) |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 25 g max. |
| Accessories | User Manual |

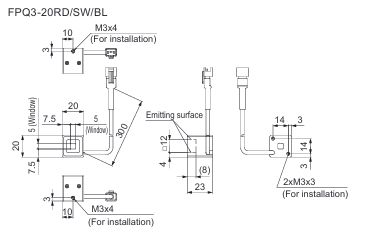

Dimensions (mm)
