CCS Inc.

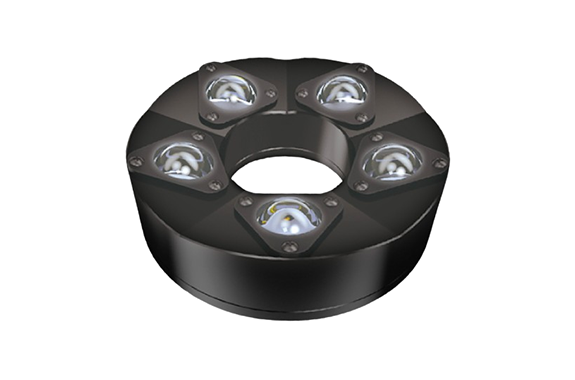

CCS HLDR-IP67-100SW Waterproof Ring
Manufacturer: CCS Inc.
Model: HLDR-IP67-100SW
Features
- This Light Unit emits white light and has an outer diameter of 100 mm, an inner diameter of 43 mm, and a height of 33.5 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,500 K typ. |
| Dimensions | Outer diameter 100 mm, Inner diameter 43 mm, Height 35.5 mm |
| Input voltage | 24VDC |
| Power consumption | 18 W max. |
| Polarity & signal | 1: (24+), 2: NC, 3: GND(-), 4: NC |
| Case material | Body: aluminum alloy (black anodized) Screws: SUS Washers: SUS, elastomer (TPE) Connectors: PA resin Lens: silicone |
| Input connector | XS2M-D423 (Manufactured by OMRON) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471 (Mod risk), IP67 (JIS C 0920) |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 95%RH (No condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 420 g max. |
| Accessories | User Manual |
| Notes | When connected to a Dedicated Cable, this product has a protective structure of IP67 to prevent dust and water intrusion so that you can apply this product to wider range of environments than previous products. However, you cannot use this product in water continuously. |

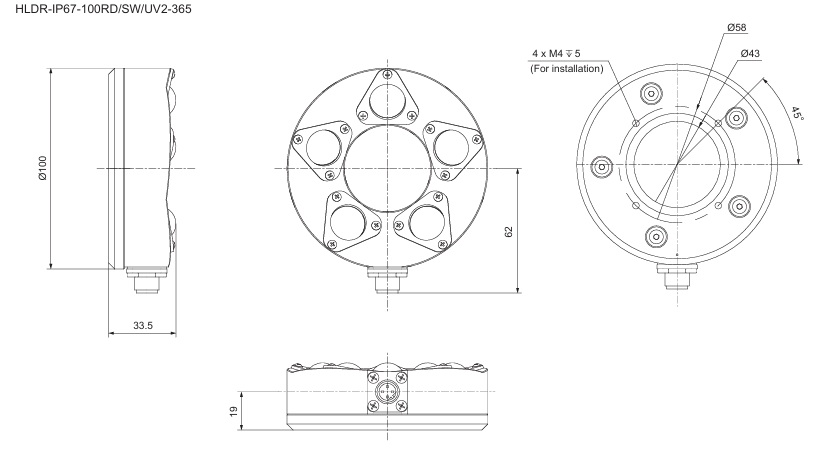

Dimensions (mm)
