CCS Inc.

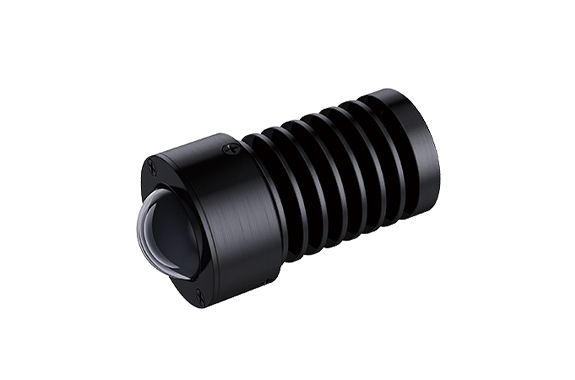

CCS HLV2-24UV3-365 UV Lights [Ultraviolet Lighting] / Violet Light
Manufacturer: CCS Inc.
Model: HLV2-24UV3-365
Features
- Spot type ultraviolet LED light with a peak wavelength of 365 nm.
- Outer diameter 24 mm, total length 54 mm, tip diameter 28 mm.
Specifications
| LED color | Ultraviolet |
|---|---|
| Peak wavelength | 365 nm typ. |
| Dimensions | Outer diameter 24 mm, Tip diameter 28 mm, Total length 54 mm |
| Power consumption | 2.8 W max. |
| Polarity & signal | 1: Signal, 2: (+), 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Input current | 0.7 A max |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（High risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 50 g max. |
| Accessories | User Manual, Radiation aperture seal, UV DANGER seal |
| Caution | * UV radiation is very harmful to the naked eye. * To avoid direct exposure to ultraviolet radiation, all workers around this product must use protective equipment. * Make known to all personnel concerned the risk of ultraviolet radiation. * Take sufficient safety precautions when handling the machinery and devices incorporating this product. * Please inquire if you would like to use in combination with a Strobe Control Unit (overdrive type). |
Dimensions (mm)
