CCS Inc.

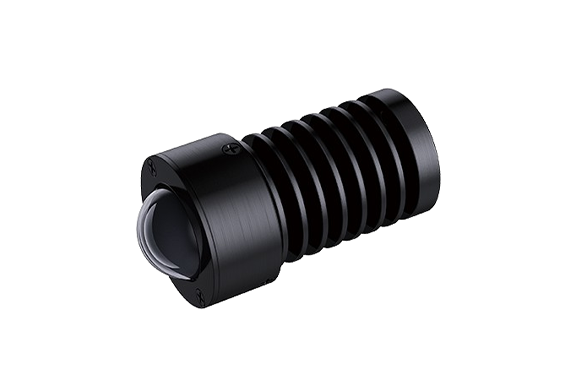

CCS HLV2-24VL3-385 / HLV2-24VL3-395 / HLV2-24VL3-405 UV Lights [Ultraviolet Lighting] / Violet Light
Manufacturer: CCS Inc.
Model: HLV2-24VL3-385 / HLV2-24VL3-395 / HLV2-24VL3-405
Features
- Spot type violet LED light.
- Available wavelengths: 385nm (HLV2-24VL3-385), 395nm (HLV2-24VL3-395), and 405nm (HLV2-24VL3-405)
- Outer diameter 24 mm, total length 54 mm, tip diameter 28 mm.
Specifications
| LED color | Violet |
|---|---|
| Peak wavelength | 385 nm typ, 395 nm typ, 405 nm typ |
| Dimensions | Outer diameter 24 mm, Tip diameter 28 mm, Total length 54 mm |
| Power consumption | 2.8 W max. |
| Polarity & signal | 1: Signal, 2: (+), 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Input current | 0.7 A max |
| Conformed standards | CE, UKCA, RoHS IEC 62471 HLV2-24VL3-385: High risk HLV2-24VL3-395: High risk HLV2-24VL3-405: Mod risk |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 50 g max. |
| Accessories | Handling Precautions |

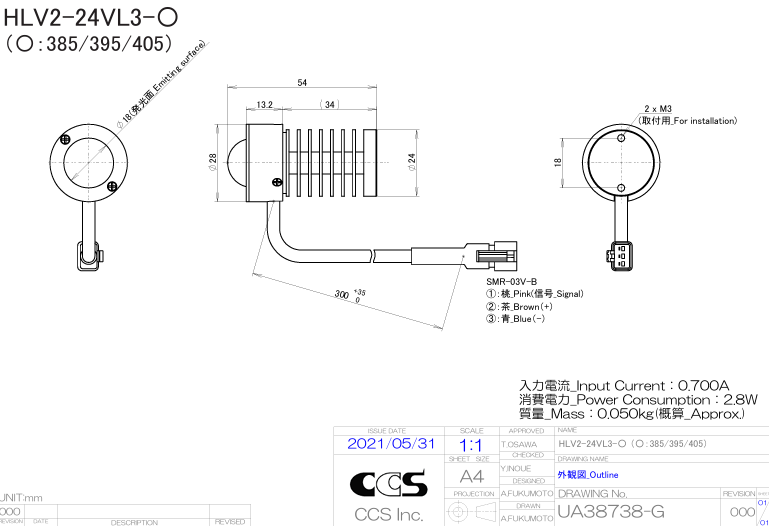

Dimensions (mm)
