CCS Inc.

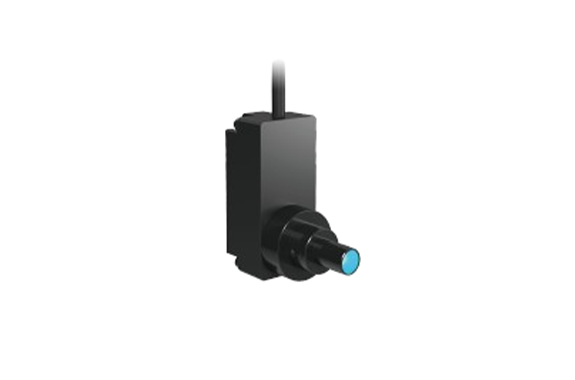

CCS HLV3-22BL-4M Spot
Manufacturer: CCS Inc.
Model: HLV3-22BL-4M
Features
- This Light Unit emits blue light and measures 22 x 46.6 x 49 mm (width x depth x height), and has a tip diameter of 8 mm. The light-emitting surface diameter measures 6 mm.
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 465 nm typ. |
| Dimensions | 22 x 46.6 x 49 (W x D x H), Tip diameter 8 mm |
| Power consumption | 4.0 W max. |
| Polarity & signal | 1: Signal, 2: (+), 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Input current | 1000mA |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（High risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 53 g max. |
| Accessories | User Manual |
| Notes | This High Uniformity Model is nice to use with the SE-65-M or SE-110-M Series lense, low-magnification (0.3 to 0.8x) Telecentric Lense manufactured by CCS. |
Dimensions (mm)
