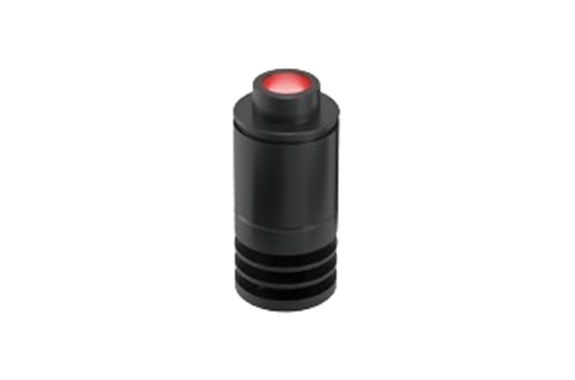

CCS HLV3-22RD-4-NR Spot
Manufacturer: CCS Inc.
Model: HLV3-22RD-4-NR
Features
- This Light Source emits red light and has an outer diameter of 22 mm, a tip diameter of 14 mm, a light-emitting surface diameter of 10 mm, and a total length of 48.1 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 630 nm typ. |
| Dimensions | Outer diameter: 22 mm, Tip diameter: 14 mm, Total length: 48.1 mm |
| Power consumption | 3.0 W max. |
| Polarity & signal | 1: Signal, 2: (+), 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Input current | 1000mA |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 37 g max. |
| Accessories | User Manual |
Dimensions (mm)
