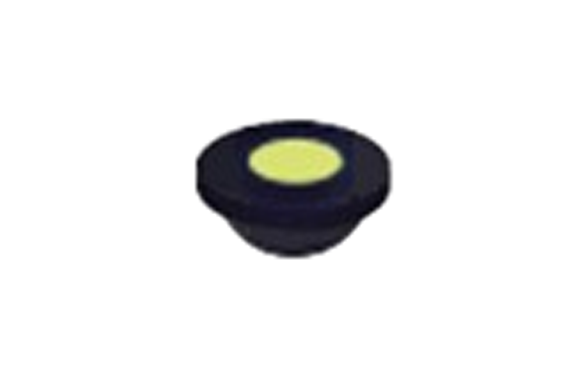

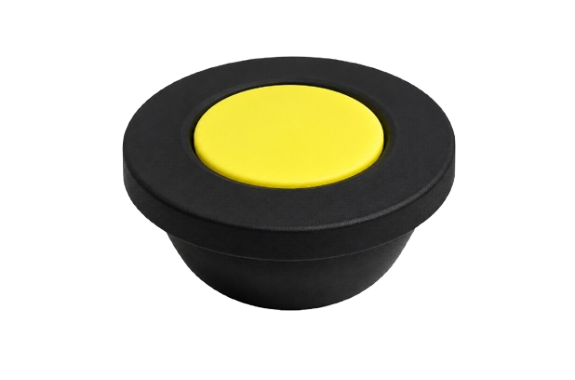

CCS HPD2-75FC Dome
Manufacturer: CCS Inc.
Model: HPD2-75FC
Features
- This Light Unit emits full color (RGB) light and has an outer diameter of 91 mm, an inner diameter of 41 mm, and a height of 45.1 mm.
Specifications
| LED color | RGB (Red, Green, Blue) |
|---|---|
| Peak wavelength | Red: 622 nm typ., Green: 525 nm typ., Blue: 470 nm typ. |
| Dimensions | Outer diameter 91 mm, Inner diameter 41 mm, Height 45.1 mm |
| Input voltage | 24VDC |
| Power consumption | 6.0 W max. (Red: 1.4 W, Green: 2.3 W, Blue: 2.3 W) |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-03V-B x 3 |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 140 g |
| Accessories | User Manual |
| Caution | Cannot be used with the strobe control unit (overdrive mode). |
| Notes | CCS accepts special orders to change the shape of the camera-side opening to 20 mm square. The height of this special ordered Dome Light is 45.1 mm. |

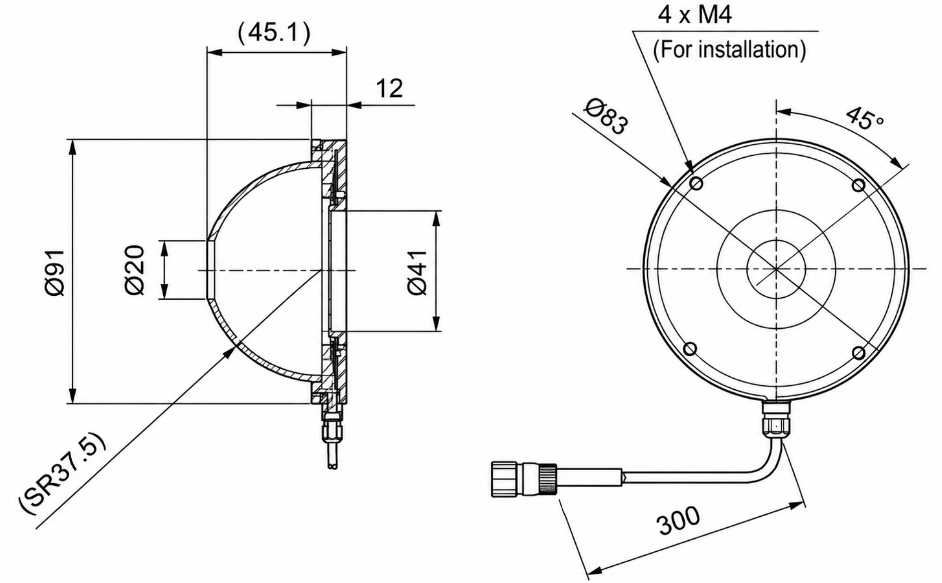

Dimensions (mm)
