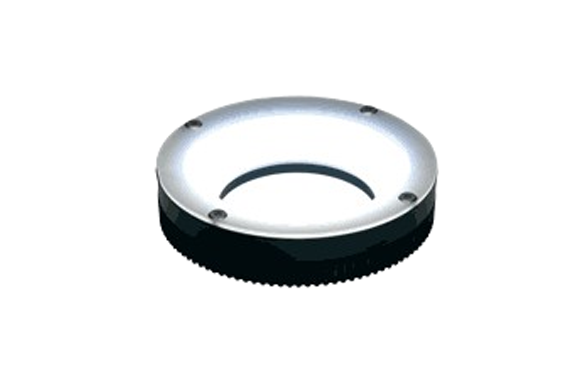

CCS HPR-PF-100SW High Power Strobe
Manufacturer: CCS Inc.
Model: HPR-PF-100SW
Features
- This Light Unit emits white light and has an outer diameter of 116 mm, an inner diameter of 66 mm, and a height of 26.4 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,500 K typ. |
| Dimensions | Outer diameter 116 mm, Inner diameter 66 mm, Height 26.4 mm |
| Peak current | 21.6 A |
| Input voltage | 48 VDC max. |
| Polarity & signal | 1: (+), 2: (+), 3: (-), 4: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, Resin |
| Input connector | ELP-04NV |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 180 g |
| Accessories | User Manual |
| Notes | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |
Dimensions (mm)
