CCS Inc.
CCS HPR2-150RD-HFCT / HPR2-150SW-HFCT / HPR2-150BL-HFCT / HPR2-150FC-HFCT Ring
Manufacturer: CCS Inc.
Model: HPR2-150RD-HFCT / HPR2-150SW-HFCT / HPR2-150BL-HFCT / HPR2-150FC-HFCT
Features
- HPR2-HFCT Series half ring light with outer diameter 166 mm.
- Available in 4 LED emission colors: red (HPR2-150RD-HFCT), white (HPR2-150SW-HFCT), blue (HPR2-150BL-HFCT), and full color RGB (HPR2-150FC-HFCT).
Specifications
| LED color | Red, White, Blue, RGB (Red, Green, Blue) |
|---|---|
| Dimensions | See Dimensions tab page |
| Input voltage | 24 VDC |
| Power consumption | Red: Contact us White: 14 W max. Blue: Contact us RGB: Contact us |
| Cable length | 0.3 m |
| Conformed standards | RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Caution | The full-color type (HPR2-150FC-HFCT) has three connectors. Use a 3-channel control unit if controlling intensity separately for each color. Cannot be used with the strobe control unit (overdrive mode). |

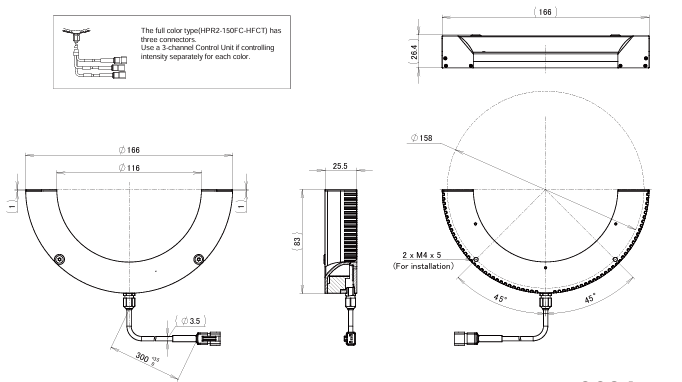

Dimensions (mm)
