CCS Inc.
CCS HPRS-50SW Ring
Manufacturer: CCS Inc.
Model: HPRS-50SW
Features

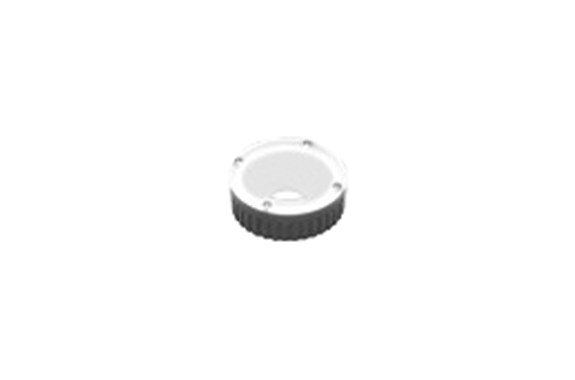

- This Light Unit emits white light and has an outer diameter of 50 mm, an inner diameter of 18 mm, and a height of 18 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,500 K typ. |
| Dimensions | Outer diameter 50 mm, Inner diameter 18 mm, Height 18 mm |
| Input voltage | 12 VDC |
| Power consumption | 7.7 W max. |
| Polarity & signal | 1: ( + ) , 2: ( – ) |
| Cable length | 500 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-02V-B |
| Conformed standards | CE, RoHS, EN 62471 |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 70°C, Humidity: 35% to 5% RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 55 g |
| Accessories | User Manual |
Dimensions (mm)
