CCS Inc.
CCS LB-2700X150SW / LB-2700X150BL / LB-2700X150RD Bar (Area)
Manufacturer: CCS Inc.
Model: LB-2700X150SW / LB-2700X150BL / LB-2700X150RD
Features

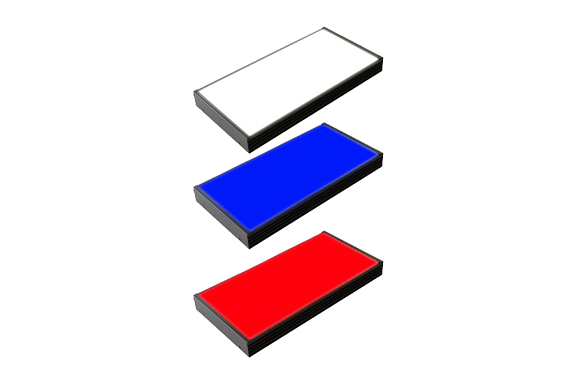

- LB Series Diffused Bar Lights
- Measures W 2721.2 mm x D 161 mm x H 33.6 mm, the light-emitting surface measures 2700 x 150 mm.
- Available in 4 wavelengths: white (LB-2700X150SW), blue (LB-2700X150B), and red (LB-2700X150RD)
Specifications
| LED color | LB-2700X150RD: Red LB-2700X150SW: White LB-2700X150BL: Blue |
|---|---|
| Correlated color temperature | LB-2700X150SW: 6300 K typ. |
| Peak wavelength | LB-2700X150RD: 630 nm typ. LB-2700X150BL: 467 nm typ. |
| Dimensions | W 2721.2 mm x D 161 mm x H 33.6 mm |
| Input voltage | 24 VDC |
| Power consumption | 724 W |
| Polarity & signal | 1, 2, 3: (+)/4, 5, 6: (-)/7: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, steel sheet |
| Input connector | SRCN1A16-7P |
| Conformed standards | CE, UKCA, RoHSIEC 624711LB-2700X150RD : ExemptLB-2700X150SW : ExemptLB-2700X150BL : Exempt |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 9.03 kg |
| Accessories | User Manual |
| Notes | LB-2700X150SW / LB-2700X150BL / LB-2700X150RD is made to order. Please contact your sales representative for details. Please contact us for their compatible control units. |
