CCS Inc.

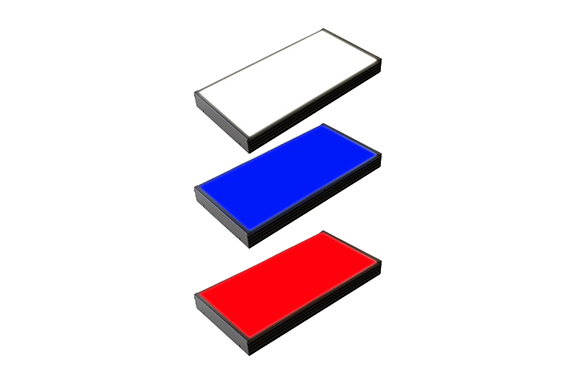

CCS LB-600X150SW / LB-600X150BL / LB-600X150RD Bar (Area)
Manufacturer: CCS Inc.
Model: LB-600X150SW / LB-600X150BL / LB-600X150RD
Features
- LB Series Diffused Bar Lights
- Measures W 621.2 mm x D 161 mm x H 33.6 mm, the light-emitting surface measures 600 x 150 mm.
- Available in 4 wavelengths: white (LB-600X150SW), blue (LB-600X150BL), and red (LB-600X150RD).
Specifications
| LED color | LB-600X150RD: Red LB-600X150SW: White LB-600X150BL: Blue |
|---|---|
| Correlated color temperature | LB-600X150SW: 6300 K typ. |
| Peak wavelength | LB-600X150RD: 630 nm typ. LB-600X150BL: 467 nm typ. |
| Dimensions | W 621.2 mm x D 161 mm x H 33.6 mm |
| Input voltage | 24 VDC |
| Power consumption | 161 W |
| Polarity & signal | 1, 2, 3: (+)/4, 5, 6: (-)/7: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, steel sheet |
| Input connector | SRCN1A16-7P |
| Conformed standards | CE, UKCA, RoHS IEC 624711 LB-600X150RD : Exempt LB-600X150SW : Exempt LB-600X150BL : Exempt |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 2.31 kg |
| Accessories | User Manual |
| Notes | LB-600X150SW / LB-600X150BL / LB-600X150RD is made to order. Please contact your sales representative for details. |
