CCS LDL-71X12VL3-405-N / LDL-71X12VL3-405-W UV Lights [Ultraviolet Lighting] / Violet Light
Manufacturer: CCS Inc.
Model: LDL-71X12VL3-405-N / LDL-71X12VL3-405-W
Features

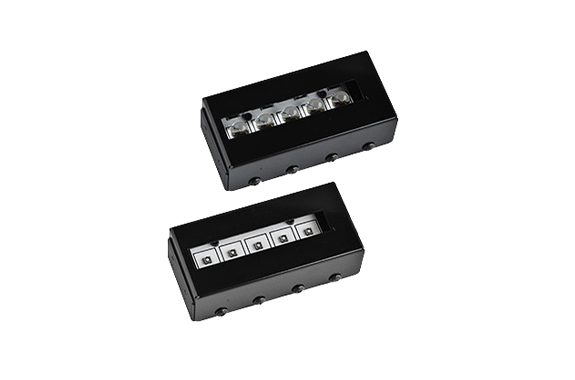

- Bar type violet LED light for convergent illumination with a peak wavelength of 405 nm.
- Narrow type (LDL-71X12VL3-405-N) for convergent illumination on a narrow area and wide type (LDL-71X12VL3-405-W) to illuminate a wide area are available.
- Measures W 91 mm x D 45.6 mm x H 28 mm, the light-emitting surface measures 71 x 12 mm.
Specifications
| LED color | Violet |
|---|---|
| Peak wavelength | 405 nm typ. |
| Dimensions | W 91 mm x D 45.6 mm x H 28 mm |
| Input voltage | 24 VDC |
| Power consumption | 7.6 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, steel sheet |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS IEC 62471 LDL-71X12VL3-405-N: Mod risk LDL-71X12VL3-405-W: Mod risk |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 270 g max. |
| Accessories | Handling Precautions |
Dimensions (mm)
