CCS LDL2-33X8SW2-IU(A) Intensity Control Units [Light Units with Intensity Control Unit]
Manufacturer: CCS Inc.
Model: LDL2-33X8SW2-IU(A)
Features

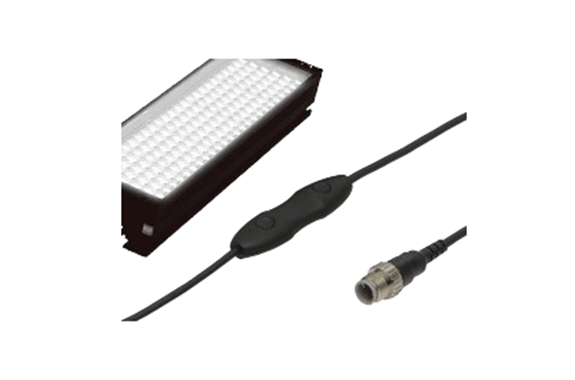

- This Light Unit with lntensity Control Unit emits white light and measures 44 x 10.4 x 13 mm (width x depth x height).
- The light-emitting surface measures 33 x 8 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 7,000 K typ. |
| Dimensions | W 44 mm x D 10.4 mm x H13 mm |
| Input voltage | 24VDC |
| Power consumption | 2.5 W max. |
| Polarity & signal | 1 : 24 VDC / 2 : NC / 3 : COMMON GND / 4 : ON/OFF input (+ 24 V) |
| Cable length | 670 mm (including the Intensity Control Unit) |
| Case material | Aluminum alloy |
| Input connector | M12 (4 pins, plug) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 60 g max. |
| Accessories | User Manual |
