CCS Inc.

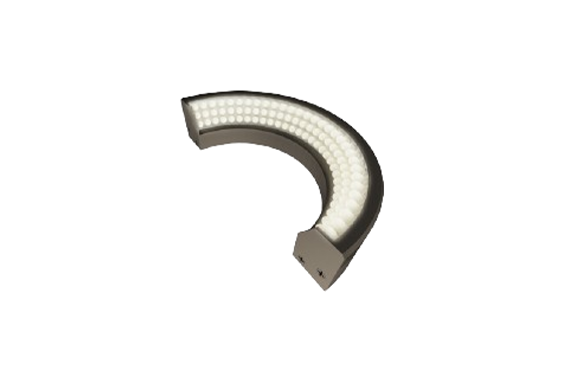

CCS LDR2-100RD2-LAHF / LDR2-100SW2-LAHF / LDR2-100BL2-LAHF / LDR2-100GR2-LAHF Ring
Manufacturer: CCS Inc.
Model: LDR2-100RD2-LAHF / LDR2-100SW2-LAHF / LDR2-100BL2-LAHF / LDR2-100GR2-LAHF
Features
- LDR2-LA-HF Series half ring light with outer diameter 100 mm.
- Available in 4 LED emission colors are red (LDR2-100RD2-LAHF), white (LDR2-100SW2-LAHF), blue (LDR2-100BL2-LAHF), and green (LDR2-100GR2-LAHF).
Specifications
| LED color | Red, White, Blue, Green |
|---|---|
| Dimensions | See Dimensions tab page |
| Input voltage | 24 VDC |
| Power consumption | Red: 4.6 W max. White: 5.7 W max. Blue: 5.7 W max. Green: Contact us |
| Cable length | 0.3 m |
| Conformed standards | RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |

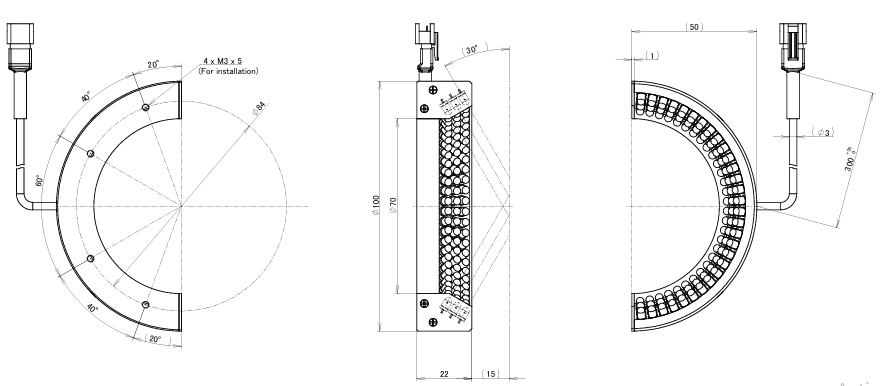

Dimensions (mm)
