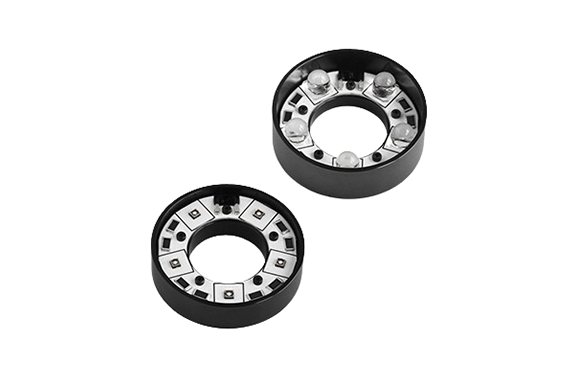

CCS LDR2-60UV3-365-N / LDR2-60UV3-365-W UV Lights [Ultraviolet Lighting] / Violet Light
Manufacturer: CCS Inc.
Model: LDR2-60UV3-365-N / LDR2-60UV3-365-W
Features
- Ring type ultraviolet LED light with a peak wavelength of 365nm.
- Narrow type (LDR2-60UV3-365-N) for convergent illumination on a narrow area and wide type (LDR2-60UV3-365-W) to illuminate a wide area are available.
- Outer diameter 60 mm, inner diameter 30 mm.
Specifications
| LED color | Ultraviolet |
|---|---|
| Peak wavelength | 365 nm typ. |
| Dimensions | LDR2-60UV3-365-N: Outer diameter 60 mm, Inner diameter 30 mm, Height 19 mm LDR2-60UV3-365-W: Outer diameter 60 mm, Inner diameter 30 mm, Height 15 mm |
| Input voltage | 24 VDC |
| Power consumption | 7.6 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS IEC 62471 LDR2-60UV3-365-N: High risk LDR2-60UV3-365-W: Mod risk |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | LDR2-60UV3-365-N: 80 g max. LDR2-60UV3-365-W: 85 g max. |
| Accessories | User Manual, Radiation aperture seal, UV DANGER seal |
| Caution | * Do not expose your eyes or skin to direct UV irradiation. * When using UV illumination, be sure to wear UV blocking eye wear and avoid looking at irradiating parts (emitting parts). * Do not turn on UV-LED irradiating parts (emitting parts) if they are facing someone’s eyes. * Wear long sleeves and gloves to protect your skin from UV irradiation. * Thoroughly educate all those involved near the product about the dangers of UV LEDs. |

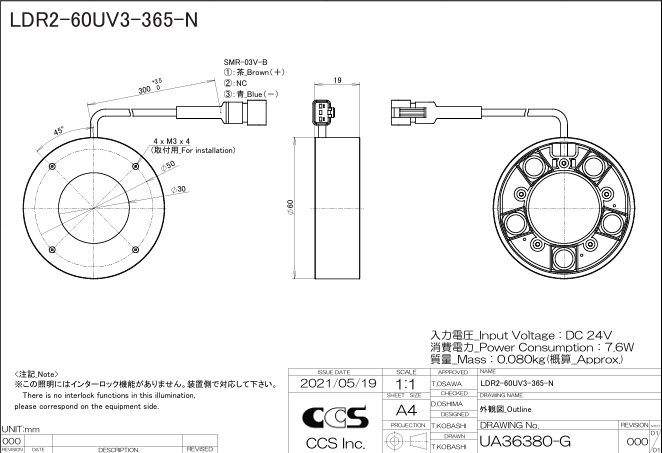

Dimensions (mm)
