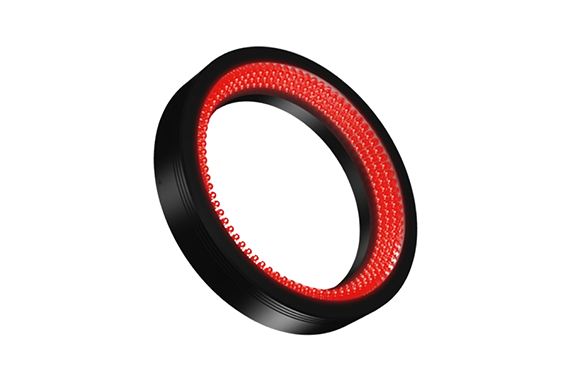

CCS LDR2-LA Series Low-Angle Ring
Manufacturer: CCS Inc.
Model: LDR2-LA Series
Features
Extraction of uneven damage or engravings
Providing direct light from a low angle to the center section allows for an image that emphasizes the workpiece’s characteristic features.
Imaging example for the LDR2-100RD2-LA:Exterior imaging of a coin
Illuminates from a low-angle at a steep slope
- By mounting LEDs on a flexible circuit board in a steep angle, it becomes possible to converge light in the center section from a low position.
- Cross-section image of the LDR2-132-LA
