CCS Inc.
CCS LFL-1012GR2 Flat
Manufacturer: CCS Inc.
Model: LFL-1012GR2
Feature

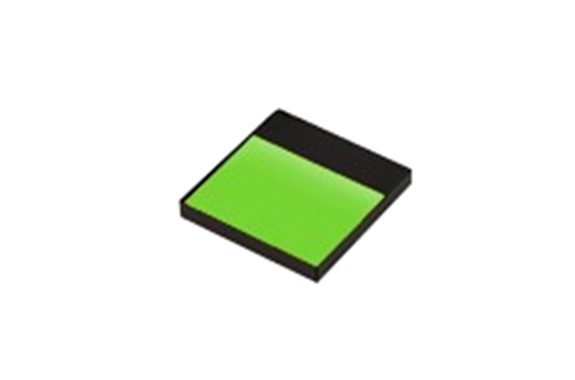

- This Light Unit emits green light and measures 42 x 43 x 6 mm (width x depth x height).
- The light-emitting surface measures 41 x 30 mm.
Specifications
| LED color | Green |
|---|---|
| Peak wavelength | 525 nm typ. |
| Dimensions | W 42 mm x D 43 mm x H 6 mm |
| Input voltage | 24VDC |
| Power consumption | 0.8 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Acrylic resin, SUS |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 35 g max. |
| Accessories | Handling Precautions |
Dimensions (mm)
