CCS LN-200CIR SWIR / Hyperspectral Imaging Light
Manufacturer: CCS Inc.
Model: LN-200CIR
Features

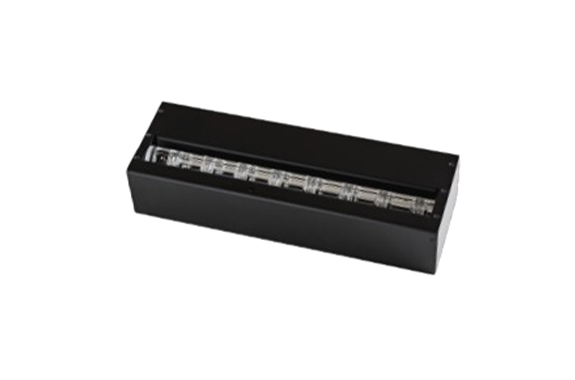

- Convergent SWIR Light LN-200CIR
- Converged emission using special lens.
- Optimal for SWIR line scan inspections.
Specifications
| Input voltage | [output ratings] DC 5.2 V typ. [range] DC 5.0 to 5.2 V |
|---|---|
| Power consumption | 46 W max. |
| Case material | Aluminum alloy |
| Output connector | HR34B-12WRA-10P |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20% to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20% to 70%RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 720 g max. |
| Accessories | User Manual |
| Notes | Warranty Period: 1 year, starting from CCS Inc. shipping date *However, if the accumulated lighting time exceeds 8,000 hours, the warranty is void even if it is within the warranty period. |

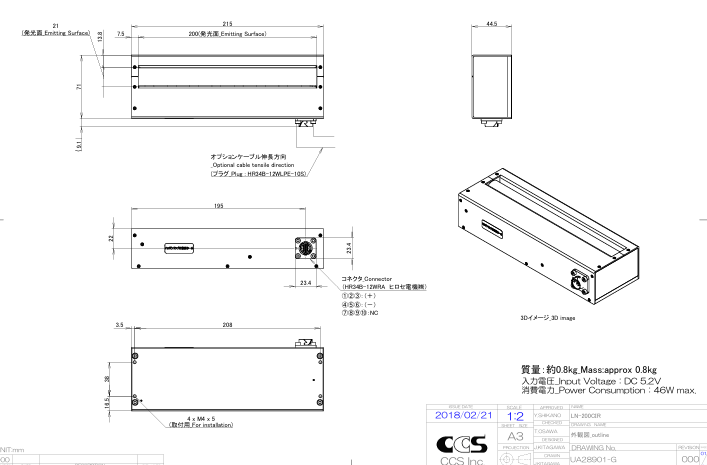

Dimensions (mm)
