CCS Inc.

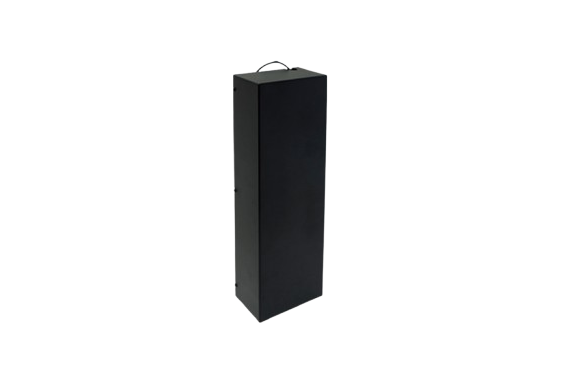

CCS MSU-30BL2 Coaxial
Manufacturer: CCS Inc.
Model: MSU-30BL2
Features
- This Light Unit emits blue light and measures 76 x 116 x 351 mm (width x depth x height).
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 470 nm typ. |
| Dimensions | W 76 mm x D 116 mm x H 351 mm |
| Input voltage | 24VDC |
| Power consumption | 0.4 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum, Acrylic resin, Polyacetal, SPCC |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 2,000 g max. |
| Accessories | f50 mm lens, Light-source converging adapters (Slit diameter: 1 mm / 2 mm / 3 mm / 4 mm x 1 each), Hexagonal wrench, Handling Precautions for LED Lights |

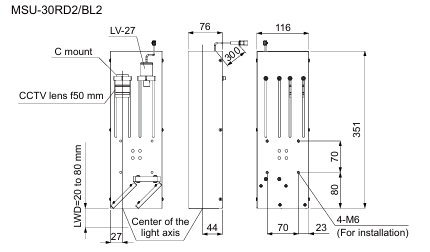

Dimensions (mm)
