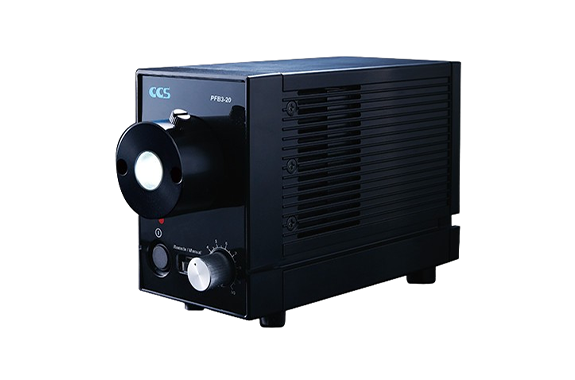

CCS PFB3(A) Series Light Source Unit
Manufacturer: CCS Inc.
Model: PFB3(A) Series
Features
- Provides light output that exceeds that of a 100 W halogen light source.
Advantages of replacing halogen light sources are:
Power consumption of 18 W greatly reduces running costs. - The compact design saves space.
- Ambient temperatures around equipment are greatly reduced by the use of LEDs.
Achieved high output up to 1.2x that of the conventional PFB2 series.*
Illuminance comparison with a 100-W halogen lamp
* Actual measurement values with light intensity of 100%, using a straight light guide of Φ8 mm diameter at 50 mm LWD away from the fiber end. The data included is for reference only and the results for individual products may vary.
The terminal block on the unit rear supports 24 VDC input. With an optional AC adapter, it can also support 100 to 240 VAC input. You can make a selection to match your actual environment.
DC supply
Use the terminal block on the rear of this unit for 24 VDC input.
AC supply
Use the optional AC adapter for 100 to 240 VAC input.
Model name: ADP2460-PFB-JTLV6
(U.S. DoE CEC Level VI External Power Supply Efficiency Standards compliant)
