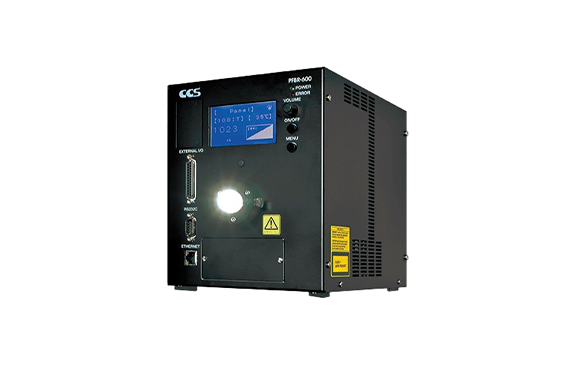

CCS PFBR-600SW2-LLCF-XF Light Source Units
Manufacturer: CCS Inc.
Model: PFBR-600SW2-LLCF-XF
Features
- Dedicated strobe model PFBR-600SW2-LLCF-XF to replace xenon light sources. Filter Changer Model achieves high power output.
Specifications
| Emitting color | White |
|---|---|
| Correlated color temperature | 5,500 K typ. |
| Dimensions | W 175 mm x D 270 mm x H 215 mm |
| Applicable fiber bundle diameter | Φ 6 – Φ 14 mm |
| Light distribution angle | Total angle of 30° |
| Number of channels | 1 channel |
| Drive method | Constant-current system |
| Intensity control method | Variable-current control |
| Input power | 100 to 240 VAC (±10%), 50/60 Hz |
| Power consumption | 410 VA at 100 V input, 420 VA at 240 V input |
| Inrush current | 40 A from a cold start |
| Ground leakage current | 0.5 mA max. (240 VAC, 60 Hz, with 100% load) |
| Insulation withstand voltage(input-output, input-FG) | 1,500 VAC for one minute, cutoff current: 10 mA, 500 VDC/20 MΩ min. |
| Conformed standards | [Compatible standards] CE, UKCA EN 60825-1, BS EN 60825-1, IEC60825-1, IEC62471(High risk) Laser Classifiaction：Class 1 [Environmental regulations] |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 80%RH (with no condensation) Altitude: 2,000 m max., AC overvoltage: Category II, Pollution degree: 2 |
| Storage temperature and humidity | Temperature: -15 to 60°C, Humidity: 20 to 85%RH (with no condensation) |
| Cooling method | Forced cooling |
| Weight | 6,900 g max. |
| Material, coating, and surface finish | Aluminum alloy (black alumite) |
| Accessories | Instruction guide, 2-m 3-prong AC power cable with ground terminal, Filter holders x 5, holder mounting screws x 18 |
| Program | [Sample Program] Sample programs are available. See the Software Tools tab. |
