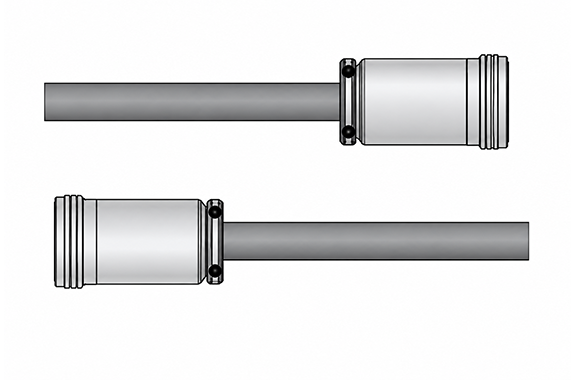

CCS QCB-2-DA Straight Cables For Metal Connector (37 Pins)
Manufacturer: CCS Inc.
Model: QCB-2-DA
Features
- Extension cable used to connect an LED Light Unit and a Constant-Current Analog Control Unit PSCC-60048(A).
- 2-m length cable with 37-pin metal connectors.
Specifications
| Cable length | 2 m |
|---|---|
| Minimum bending radius (reference value) | 99 mm |
| Connectors (Control Unit side) | Metal connector (37-pin, plug) |
| Connectors (Light Unit side) | Metal connector (37-pin, socket) |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 1,100 g max. |
| Notes | The connector type on the Light Unit side varies between QCB- and QCB-DA-series Extension Cables. Check the connector type on your Light Unit and select the Extension Cable. |

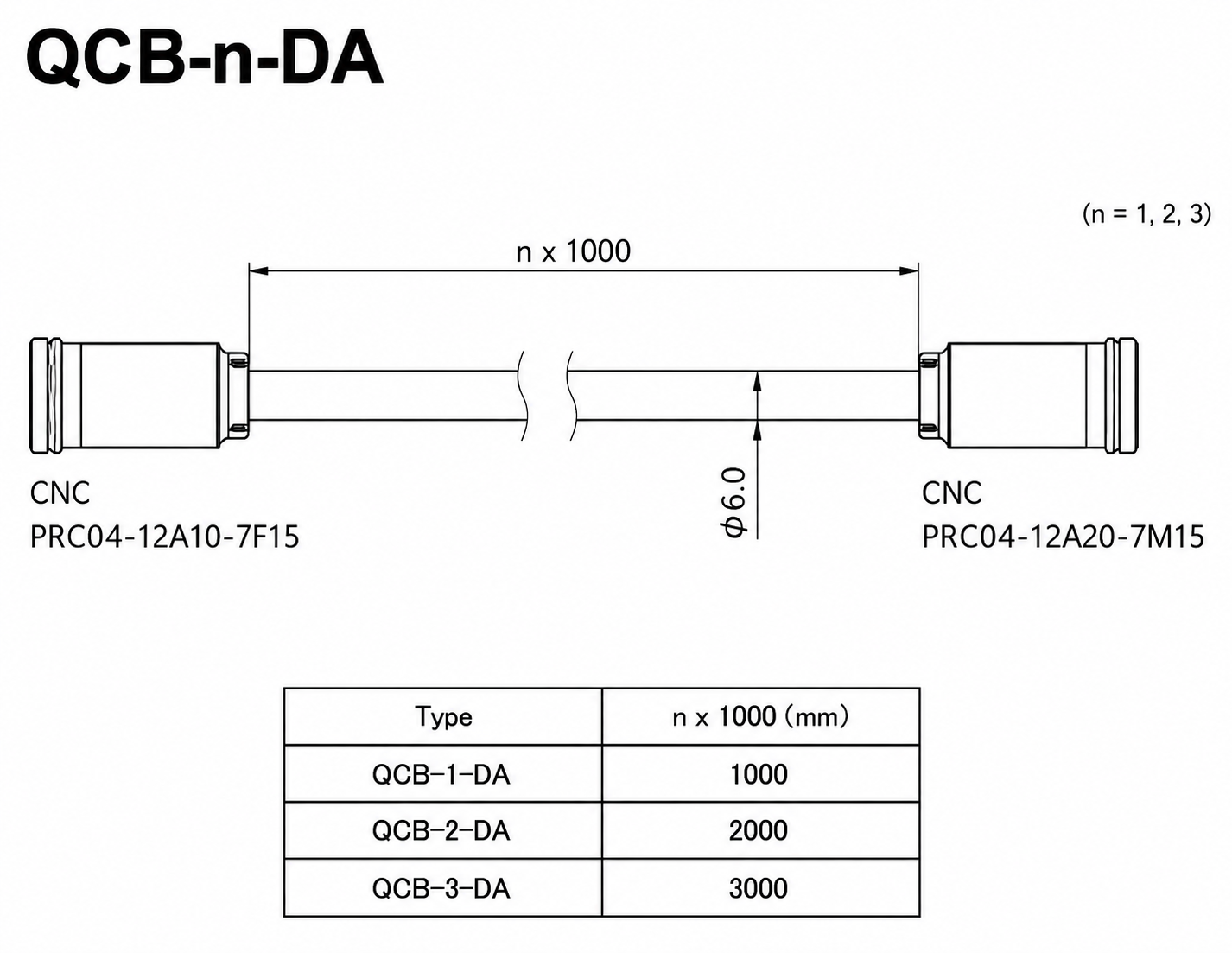

Dimensions (mm)
