Daico Thermotec
Daico DX Series Drying and Draining Air Blow Slit Type Air Nozzle for Compressor
Manufacturer: Daico Thermotec Co.,Ltd
Model: DX Series
Features
The DX series is a slit-type nozzle for air blowing exclusively for high-pressure air (compressors, etc.).

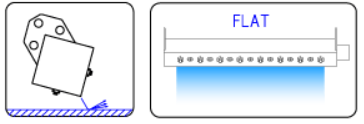

It ensures stable linear air flow from low to high air speeds, allowing for even removal during air blowing processes such as drying and draining on the line.
The specifications of the jet slit are the same as those of the CX series compressor nozzle and the CY & CYW series compressor nozzle , but the DX series has an air inlet attached to the end.
Specifications
| Nozzle Model | Slit Length | Weight (reference) | Slit Width | Air inlet |
|---|---|---|---|---|
| DX-100 | 100mm | 225g | 0.15mm | PS (Rp) 1/4″ (internal thread) |
| DX-150 | 150mm | 300g | ||
| DX-200 | 200mm | 370g | ||
| DX-250 | 250mm | 450g |
