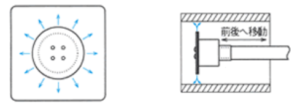

Daico JX Circumferential Outer Injection Type Ring Nozzle
Manufacturer: Daico Thermotec Co.,Ltd
Model: JX
Features
- The JX series is a nozzle designed for high-pressure air (compressors).
- The JN series is a nozzle designed for high-pressure blower air. It demonstrates stable performance at wind speeds from low to 160 m/s.
- These nozzles can be connected to heat air generators and used with high-temperature air.
- Custom sizes larger or smaller than the standard diameters are also available
Specifications
| Nozzle Type | Spray Tip Diameter | Slit Width | Inlet |
|---|---|---|---|
| JX-1 | φ20~30 | 0.3mm | PS 1/4″ |
| JX-2 | φ32~42 | 0.3mm | PS 3/8″ |
| JX-3 | φ44~60 | 0.3mm | PS 1/2″ |
| JX-4 | φ62~80 | 0.3mm | PS 1/2″ |
| JX-5 | φ70~90 | 0.3mm | PS 1/2″ |
| JN-1 | φ50~60 | 1mm | PS 1″ |
| JN-2 | φ60~80 | 1mm | PS 1/4″ |
| JN-3 | φ80~100 | 1mm | PS 1/2″ |
| JN-4 | φ100~130 | 1mm | PS 2″ |
