Daico Thermotec

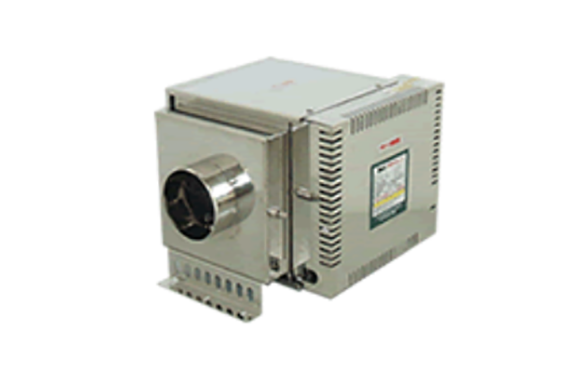

Daico SH series Horizontally Placed Hot Air Heater
Manufacturer: Daico Thermotec Co.,Ltd
Model: SH series
Features
This is a multipurpose electric heater for generating hot air, designed to achieve a high heat exchange rate. It is a stainless steel heater, but mass production has made it possible to achieve a low price.
With a wide range of models available, you can freely select and connect them, and they have a long life and can operate continuously.
Specifications
| power supply | Material of main body casing | Material of heating element and gas contact part | Double insulation structure | Overheating prevention function |
|---|---|---|---|---|
| 200V 3 phase | SUS304 | SUS321 | Standard Specifications | Standard Specifications |
The hot air heater SH series has stainless steel gas contact parts, so it can also be used for steam heating.
| Model | Heater Capacity | Minimum specifiable airflow | Outlet | Suitable automatic temperature controller |
|---|---|---|---|---|
| SH-3 | 4kw | 0.59 m3/min | φ50～φ100 | TC-6 |
| 5kw | 0.73 m3/min | |||
| SH-4 | 6kw | 0.88 m3/min | φ50～φ150 | |
| 7.5kw | 1.1 m3/min | TC-12 | ||
| SH-5 | 8kw | 1.17 m3/min | φ50～φ100 | |
| 10kw | 1.47 m3/min | |||
| SH-6 | 12kw | 1.76 m3/min | φ50～φ150 | |
| 15kw | 2.2 m3/min | TC-20 | ||
| SH-7 | 15kw | 2.35 m3/min | φ75～φ150 | |
| 18kw | 2.8 m3/min | |||
| SH-8 | 20kw | 3.13 m3/min | φ100～φ250 | |
| 24kw | 3.76 m3/min | TC-33 | ||
| 25kw | 4.2 m3/min | |||
| 30kw | 5.03 m3/min | |||
| SH-9 | 30kw | 5.03 m3/min | φ75～φ150 | |
| 33kw | 5.54 m3/min |
