Daico Thermotec

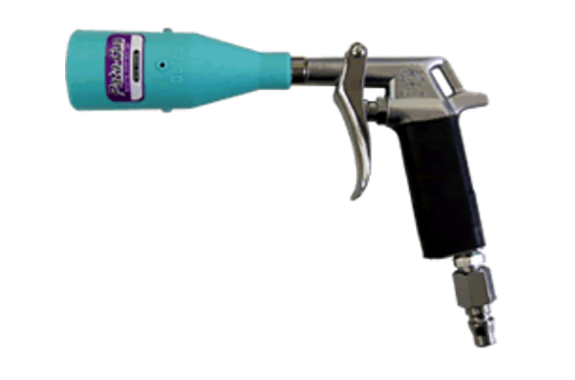

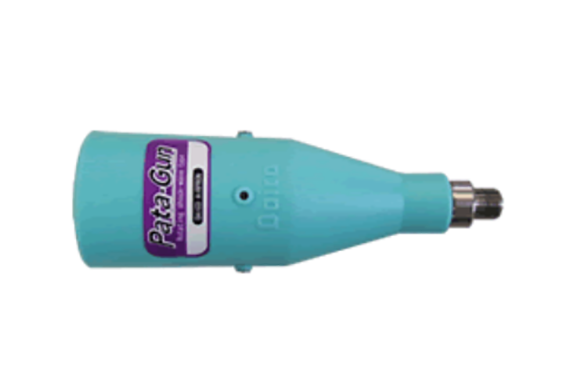

Daico SPG-25&25G Rotating Wave Nozzle Patagun


Manufacturer: Daico Thermotec Co.,Ltd
Model: SPG-25&25G
Features
The soft urethane fluid injection outlet protruding from the back of the cover rotates at high speed, causing intermittent shock waves to spread over a wide area.
Compared to the pushing effect of conventional air guns, the Pata Gun’s air hitting effect reduces air consumption and shortens processing time.
- The air outlet of the nozzle tube behind the cover rotates at high speed.
- By rotating, intermittent shock waves spread over a wide area.
- It can remove water and dust more effectively than conventional air guns.
- By rotating the nozzle tube outlet, processing time can be shortened and air consumption can be reduced without changing the flow rate

Specifications
| Case | POM resin (polyacetal) |
|---|---|
| Inner Rotor | POM resin (polyacetal) |
| bearing | SUJ2 steel (grease filled) |
| Nozzle tube part | Made of soft urethane |
| Connection port | BS (nickel plated) |
| Injection diameter | φ25 |
| Usage flow rate | 100 to 110 NL/min |
|---|---|
| Usable fluid | Air Inert Gas |
| Working pressure air gun | 0.4 to 0.5 MPa. |
| Fixing the working pressure piping | 0.35-0.45Mpa. |
| Usable temperature | 10 to 40°C |
| Product weight (unit type) | 113g |
| Usage flow rate (0.4Mpa) | 100NL/min |
