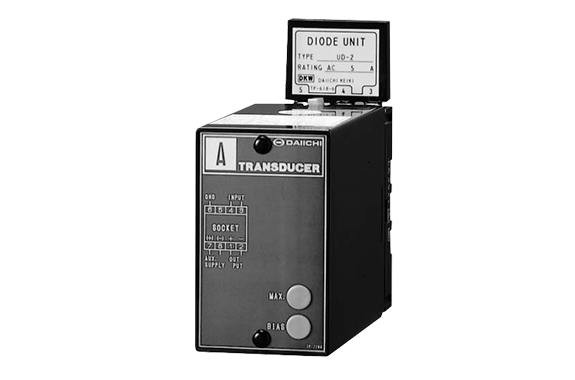

Daiichi Electronics AC Current Transducer AETP2-3F2

Manufacturer: Daiichi Electronics Co., Ltd.
Model: AETP2-3F2
Features
- This is a model with auxiliary power supply. Constant voltage and constant current output with 4–20 mA output is available.
- Uses a hybrid IC-based true RMS method, making it suitable even for distorted waveforms and SCR waveform input.
- Satisfies a withstand voltage of AC 2,000V (50/60Hz) for 1 minute between input, output, auxiliary power, and earth.
- Equipped with primary and secondary electrostatic shielding to protect output-side devices from lightning surges, etc., on the input side.
- Impulse withstand voltage: guarantees 5kV 1.2/50 μs (positive/negative polarity) 3 times between the entire circuit and earth.
- Equipped with output line surge protection (2,000A, 8/20 μs, both polarities), allowing direct signal transmission to remote locations.

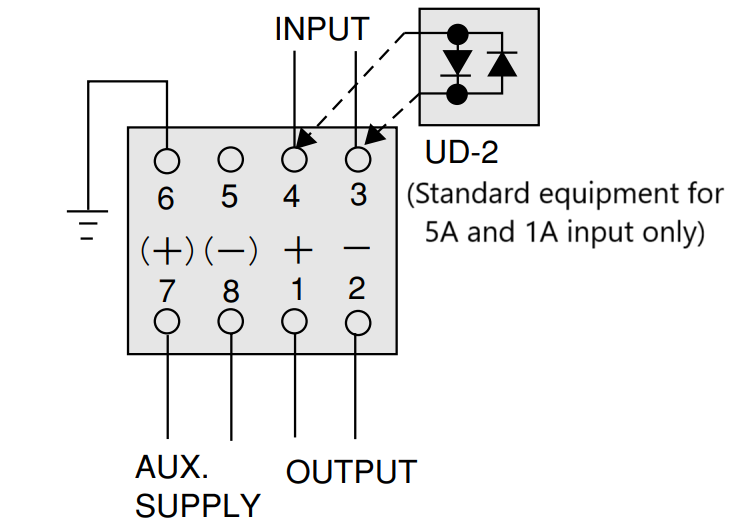

Wiring Diagram
Nlote: The polarity inside the parentheses applies when the auxiliary power supply is DC.
