Manufacturer: Daiichi Electronics Co., Ltd.

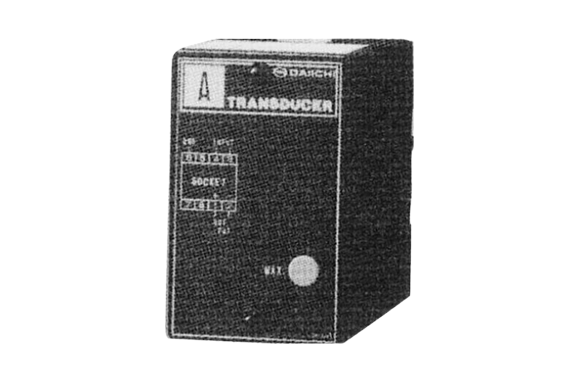

Model: AP2-34

Features

• Auxiliary power supply is not required.
• Load resistance specified type.
• Input, output, and ground are completely isolated with withstand voltage of AC 2,000 V (50, 60 Hz) for 1 minute.
• Impulse withstand voltage is guaranteed for three iterations each for the electrical circuit and between ground: 5 kV, 1.2/50 μs, positive and negative polarity.
• Equipped with primary and secondary electrostatic shielding to protect the output-side equipment from input-side surges, etc.

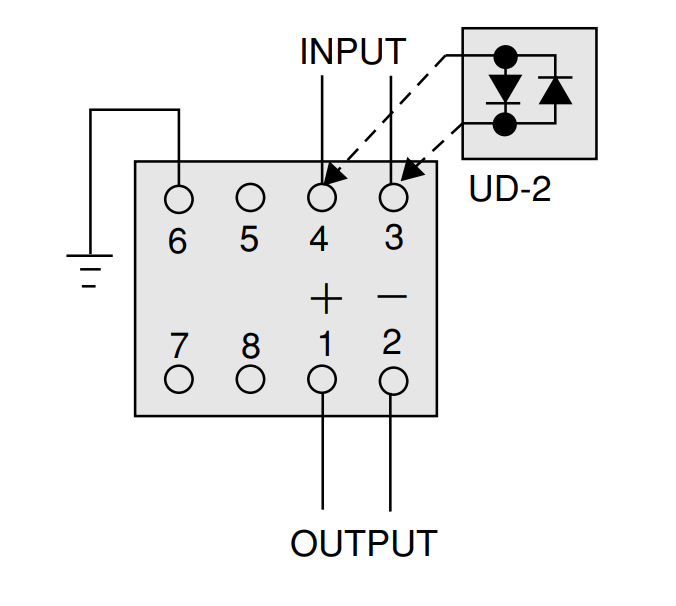

Wiring Diagram
