Manufacturer: Daiichi Electronics Co., Ltd.

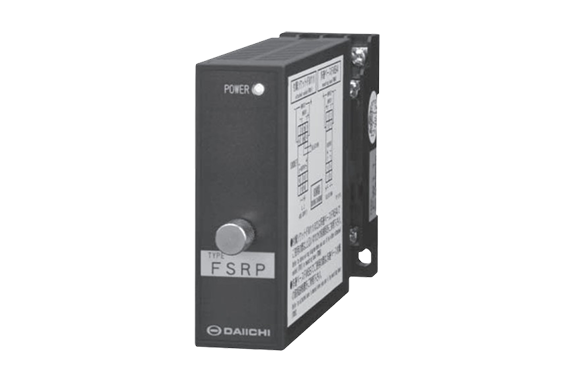

Model: FSRP

Features

• Compact design with high dielectric strength.
• Withstand voltage between input/output signal terminals, auxiliary power, and outer case: AC 2000 V (50/60 Hz) for 1 minute insulation.
• For models where the selection signal is a voltage input type, the withstand voltage is: AC 2000 V (50/60 Hz) for 1 minute between selection signal terminal, input/output signal terminal, auxiliary power, and outer case.
• When switching current signals, an M·M·B contact-type relay is used to prevent the output terminal from opening.
  (Note: A brief open circuit may occur due to relay contact bounce during switching)
• Non-voltage contact input and voltage input (DC 24 V) are selectable for signal switching.
• Socket is standard accessory.
  (Note: When using a multi-base, socket is not required, please specify accordingly)
• Socket name: FW11

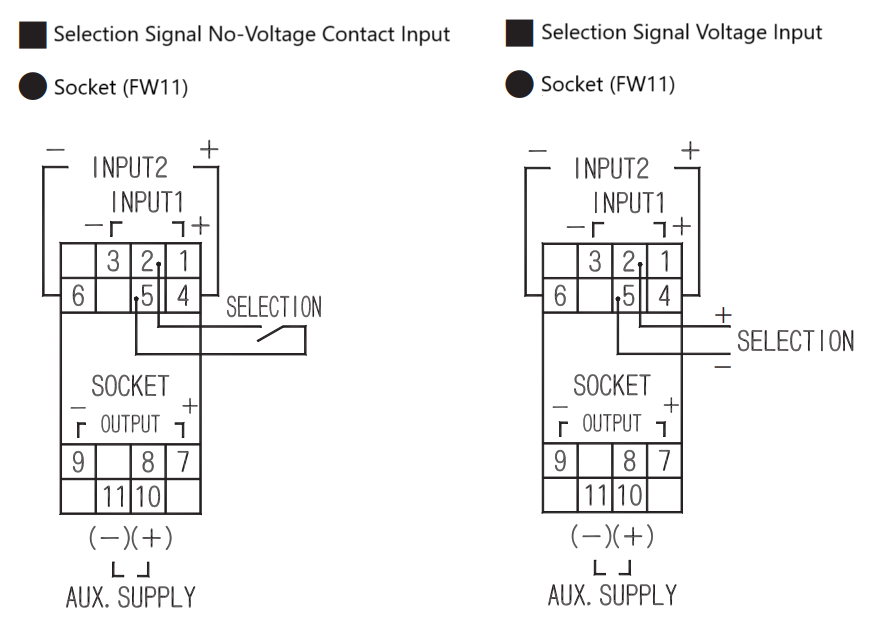

Wiring Diagram
