Daiichi Electronics

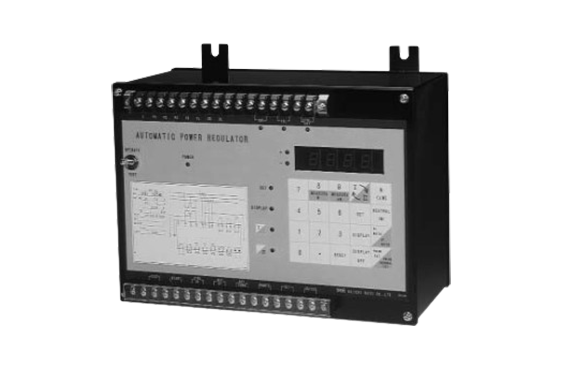

Daiichi Electronics Automatic Power Regulator AW-101

Manufacturer: Daiichi Electronics Co., Ltd.
Model: AW-101
Features
- Easy to set
Various control values can be easily set by key operation. - A wide variety of displays are available:
current measurement value display (2 types of digital display), set value display (6 types of digital display), and operating status display. - Two models are available: one for constant generator control and one for constant receiving power control.
AW-101: For constant generator control
AW-101R: For constant control of generated power - Remote control of power settings possible
- With setting value storage function
- The EEPROM allows each setting to be saved even during a power outage.

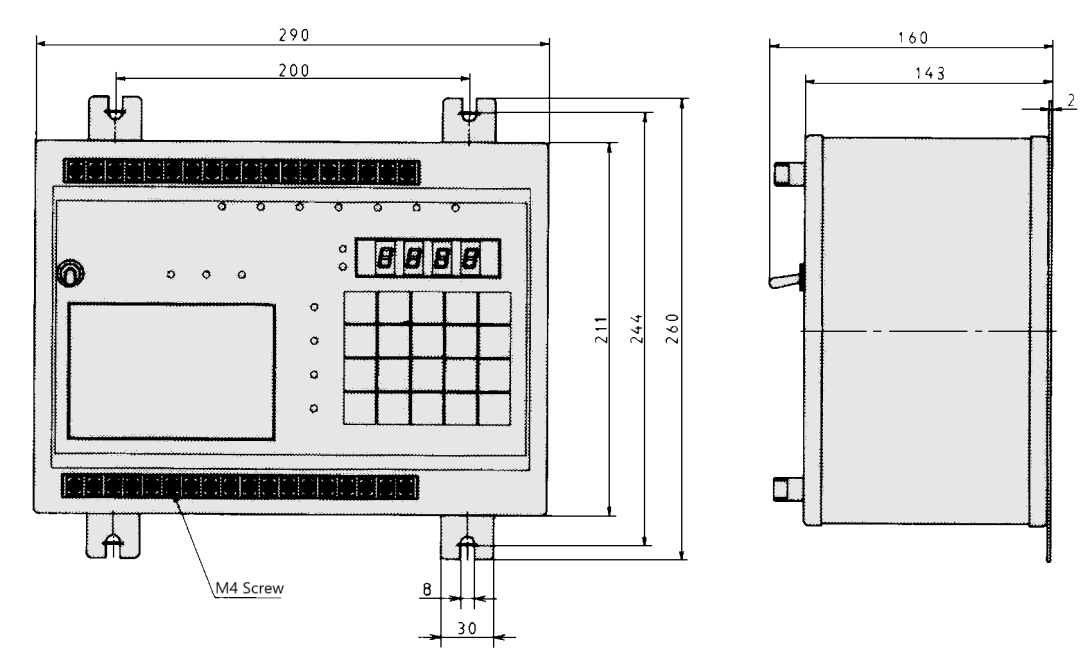

Outline Drawing
