Manufacturer: Daiichi Electronics Co., Ltd.

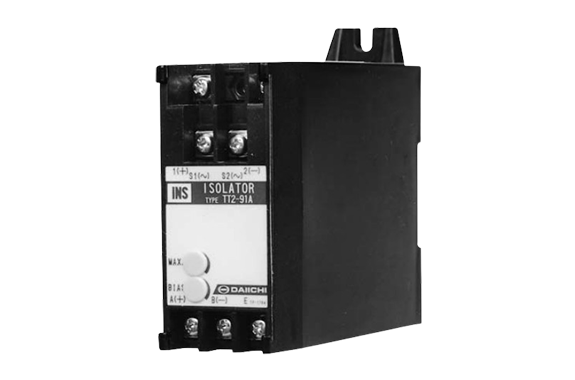

Model: TT2-91A

Features

• Input, output, auxiliary power, and earth: withstand voltage of AC 2,000V, 50/60Hz, insulation for 1 minute
• Impulse withstand voltage between circuits (including earth), auxiliary power and I/O, input and output:
  5kV 1.2/50 μs (positive and negative polarity), 3 times each
• Supports both DIN rail and panel mounting

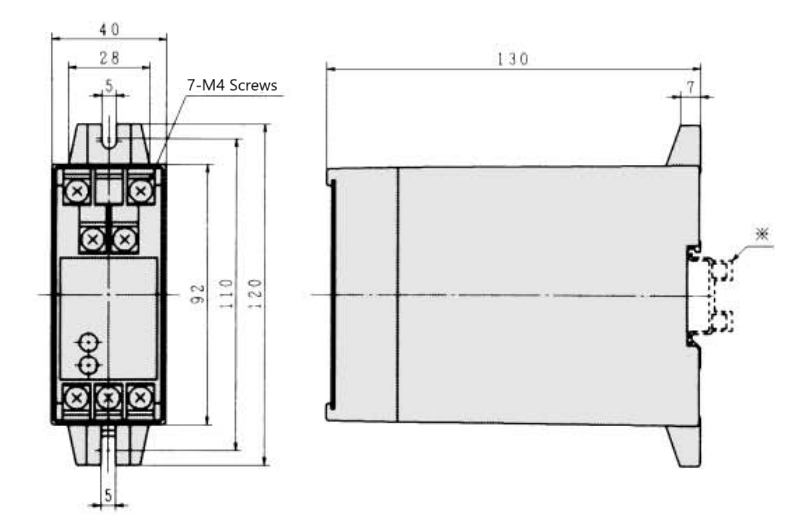

External dimensions (Unit : mm)

※ For DIN rail mounting (height 15 mm), please use a DIN standard 35 mm rail.
