Manufacturer: Daiichi Electronics Co., Ltd.
Model: AGC-100

Features

• It is a small, thin control device that is mounted on a panel. (AGC-300: DIN144×144)
• The maximum number of generators that can be operated is eight. This is ideal for systems that may need to be expanded. (One unit is used for each.)
• Operating conditions can be easily set and switched, ensuring safe operation that is tailored to the system.
• This is a control device with a safety concept that includes a synchronous check relay, protection against reverse current receiving, and protection against generator overload.
• NK approved product (Model name/specification code: AGC-300-51, Approval number: 08A011)

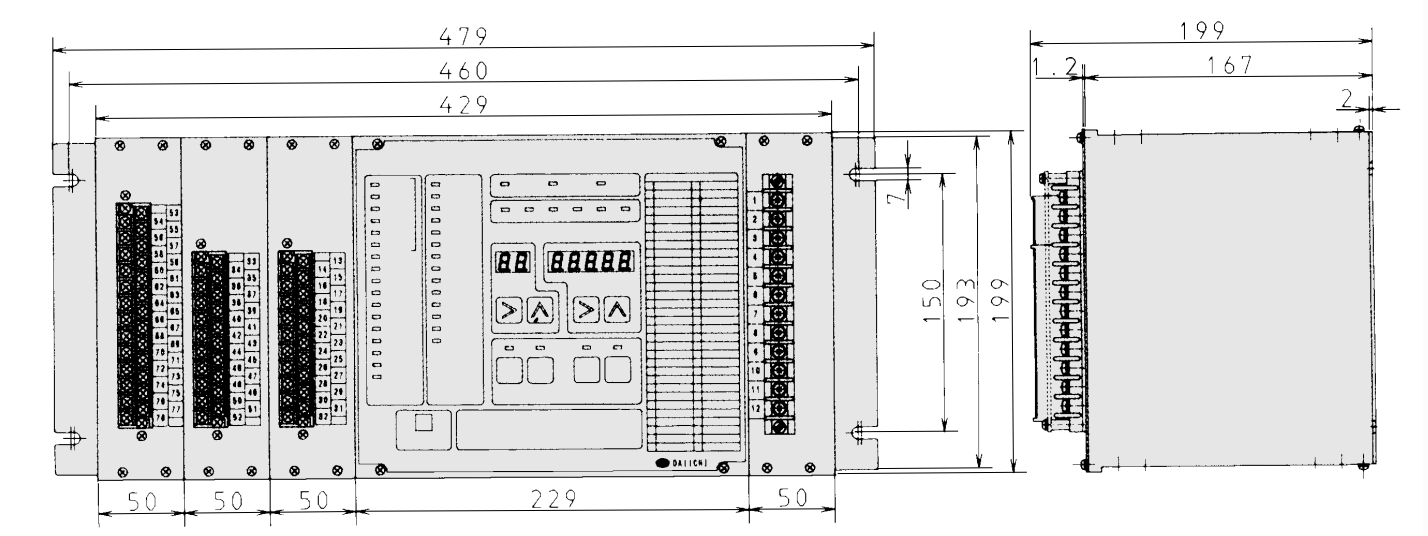

Outline Drawing
