Manufacturer: Daiichi Electronics Co., Ltd.

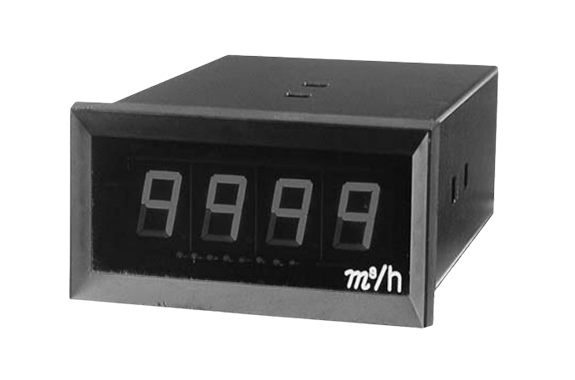

Model: DP40-11C

Features

• It is a highly accurate and reliable design that uses a CPU.
• The communicator (CM-1) allows arbitrary scaling.
• Polarity can be displayed.
• Can be attached to 15mm mosaic panels.
  (One-touch installation is also possible with separately sold mounting brackets.)
• Can set the polarity display, decimal point position, over-range, under-range, and zero suppression functions.

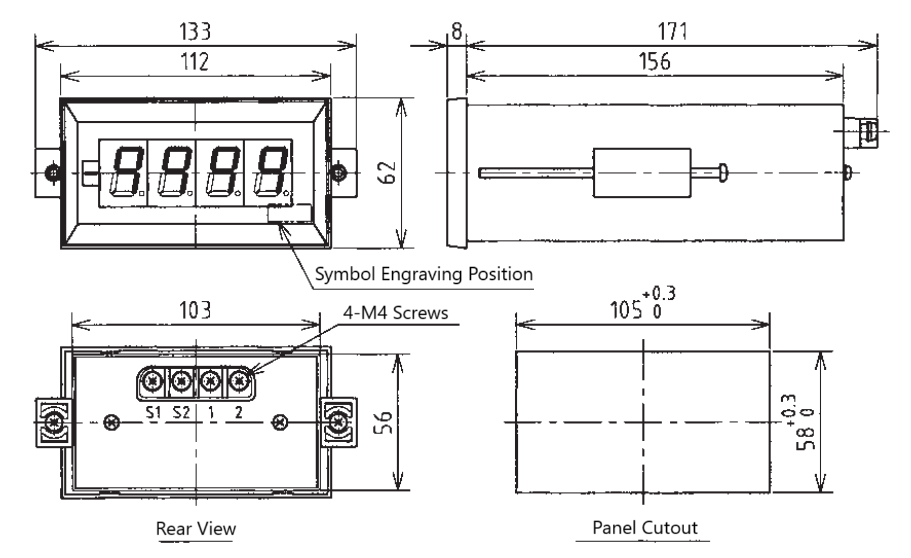

Outline Dimension Drawing (Unit: mm)
