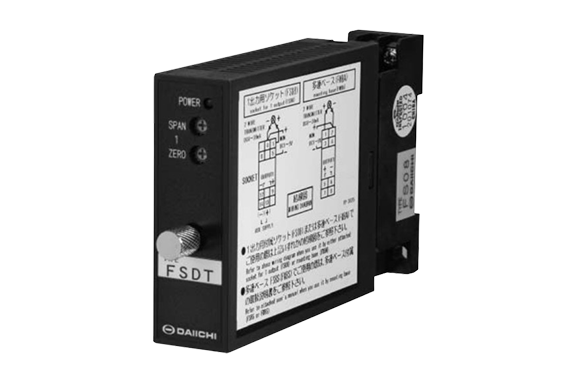

Manufacturer: Daiichi Electronics Co., Ltd.
Model: FSDT

Features

• Designed for high withstand voltage in a compact size.
• Insulation withstand voltage between input, output, auxiliary power supply, and enclosure: AC 2,000V (50/60Hz) for 1 minute.
• This is a 2-wire transmitter distributor with distributor and signal conversion functions.
• Equipped with a current limiting protection circuit for transmitter power supply (limit current 23–30 mA).
• The transmitter’s DC 4–20 mA signal can be monitored as a DC 1–5V (±0.1%) signal at terminals 4–5 of socket FS08.
• As it is a constant voltage/current output type, no adjustment is needed when used within the load resistance range.
• Power-on status can be confirmed via LED.
• Zero and span adjustment is possible. (Adjustable ±2%)

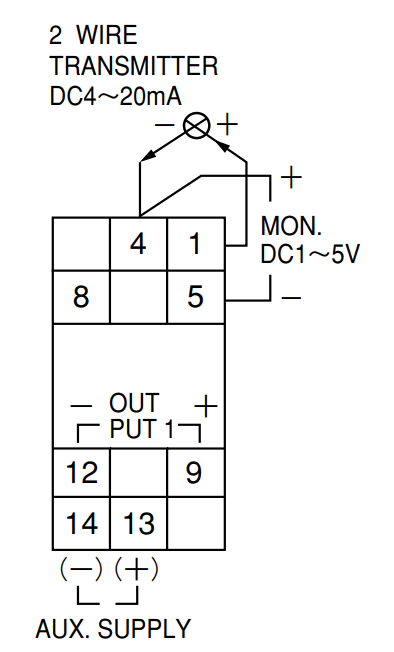

Wiring Diagram
