Daiichi Electronics

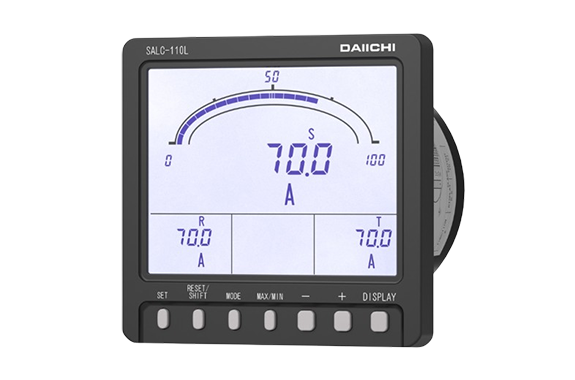

Daiichi Electronics LCD Meter Electronic Three Phase Ammeter SALC-110L

Manufacturer: Daiichi Electronics Co., Ltd.
Model: SALC-110L
Features
- Supports three-phase three-wire, single-phase, and single-phase three-wire systems.
- Displays 1 bar graph and 4 digital measurements simultaneously.
- Optional outputs: 3 analog, 1 alarm; output types selectable via settings.
- Resettable via external input with selectable alarm and max/min value functions.
- Wide power supply: AC85–264V / DC80–143V (AC/DC compatible).
- Fits standard 110mm square mechanical meter panel cutouts.
- Adjustable backlight with on, off, or auto-off modes.

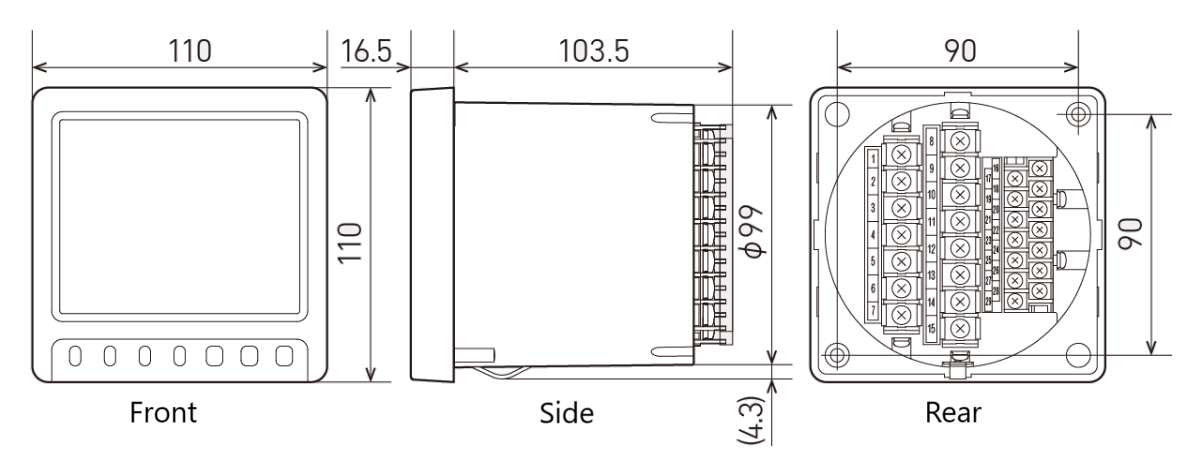

External dimensions
- Unit: mm
- Weight: Approx. 600g
