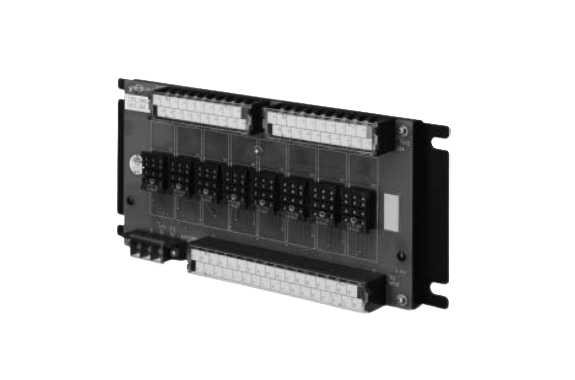

Daiichi Electronics One Output Type FSBS
Manufacturer: Daiichi Electronics Co., Ltd.
Model: FSBS
Features
- Available in two storage types: for 16 units or 8 units.
The 8-unit type is recommended for setups with fewer transducers or limited installation space. - Supports two mounting styles: wall-mount and DIN rail mount.
- The first output has two connection options—terminal block or connector—allowing flexible selection based on output destination.
- FSBS: A connection base that stores 1-output type small plug-in transducers all at once.
- FWBS: A connection base that stores both 1-output and 2-output type small plug-in transducers all at once.
Terminal Block Specifications
| Specification | Power (Earth) Use | Input Use | Output Use (Terminal Block Output) |
|---|---|---|---|
| Terminal Screw | M3.5 × 8L (with seat) | M3.5 × 7L (with seat) | M3.5 × 7L (with seat) |
| Compatible Wire Size | 2 mm² | 2 mm² | 2 mm² |
| Compatible Crimp Terminals | 1.25–3.5 2–3.5 1.25–4 2–4 1.25–5 | 1.25–3.5 2–3.5 | 1.25–3.5 2–3.5 |
