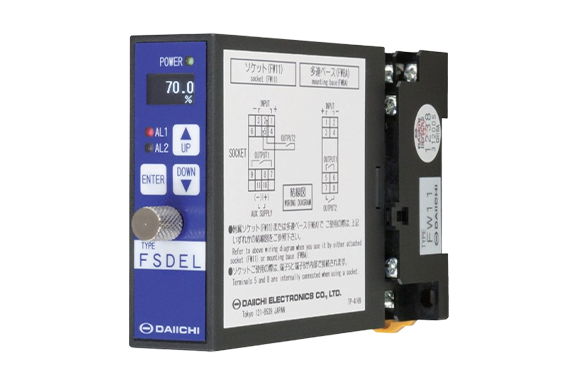

Manufacturer: Daiichi Electronics Co., Ltd.
Model: FSDEL

Features

• Compact Size
  The conventional alarm setter (SDLC-105A) has been miniaturized.
  Same dimensions as the small plug-in transducer (Fine series).
• Two Mounting Methods
  Can be mounted using a socket or a multi-unit base (FWBA).
• Bright and Easy-to-Read Settings/Measurements
  Adopts a high-contrast organic EL panel for clear display of settings and measurements.
• Output Operation Status Display
  Displays the output operation status using a red monitor lamp on the front panel.
• Test Function
  Allows confirmation of alarm output operation without applying an input signal.
• Various Setting Functions
  Equipped with setting functions such as:
  Output modes (upper/lower limit, excitation/non-excitation)
  Deadband
  Startup delay
  Contact delay, etc.

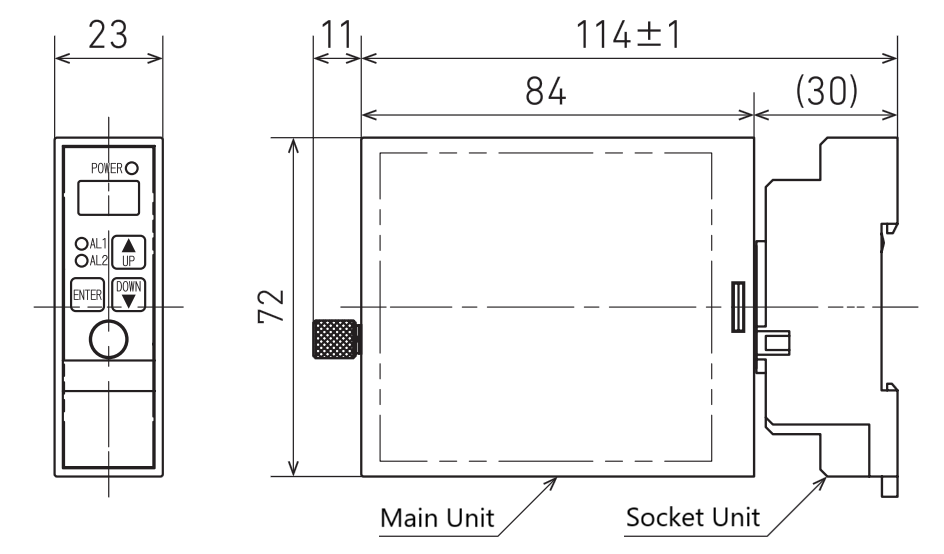

External Dimensions

• Main Unit: Approx. 105g
• Socket Unit: Approx. 50g
