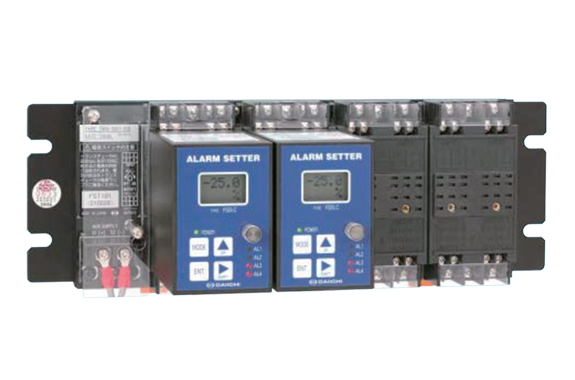

Daiichi Electronics Plug-in Alarm Setter FSDLC
Manufacturer: Daiichi Electronics Co., Ltd.
Model: FSDLC
Features
- Choose from 5 output types, including 2 (1c), 3 (1a/1b), or 4 shared-contact outputs.
- Setpoints and measurements are shown as scaled (engineered) values.
- Includes max/min value display, startup delay, and contact delay functions.
- Upper and lower detection limits can be configured separately.
- Setpoints adjustable from -25% to +125% of input range.
- Both upper and lower limits are assignable as control thresholds.
- Improves testing by displaying contact delay timer status in real time.
Input Operating Range And Accuracy
| Input Type | Operating Range | Accuracy (Relative to Input Span) |
|---|---|---|
| Voltage Input | DC 60 mV to less than 1 V | ±0.2% |
| DC ±60 mV to less than ±1 V | ±0.2% | |
| DC 1 V to 60 V | ±0.1% | |
| DC ±1 V to ±60 V | ±0.1% | |
| Current Input | DC 1 mA to 50 mA | ±0.1% |
| DC ±1 mA to ±50 mA | ±0.1% |
