Manufacturer: Daiichi Electronics Co., Ltd.

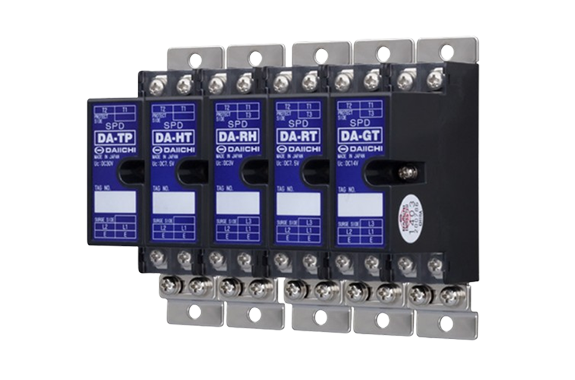

Model: DA Series (DA-TP/HT/RH/RT/GT)

Features

• JIS Standard Compliance
  Compliant with JIS C 5381-21:2014.
• Supports Various Signal Circuits
  Compatible with DC, thermocouples, RTDs, potentiometers, and pulse signals.
• Compact Plug-in Design with Excellent Maintainability
  Even if the main unit is pulled out from the terminal block, signal lines remain connected, making maintenance easy.
• Ground Terminal Connectors Included as Standard
  DA series ground terminals can be connected without additional components.

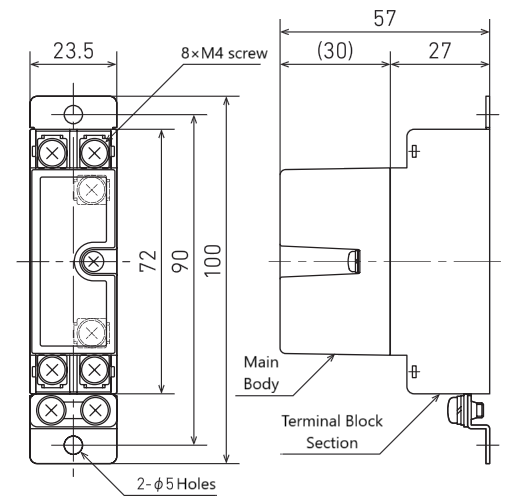

Outline Drawing (Unit : mm)

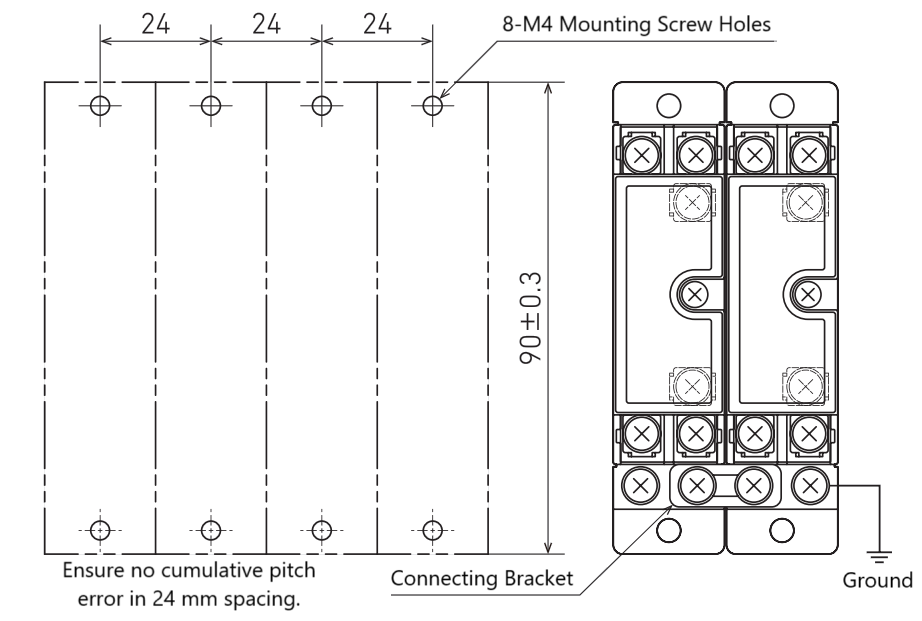

Panel Mounting Diagram (Unit : mm)
