Manufacturer: Daiichi Electronics Co., Ltd.
Model: DA3 Series (DA3-TP)

Features

• The new terminal arrangement allows the terminals to be used for external connections.
• The ground terminal can be connected using the connecting bracket (optional).
• The impulse durability is high at 20kA (8/20μs).
• Detects 10kA (8/20μs ±15%) induced lightning surges between ground.
  Status indicator turns white; alarm contact remains ON.
  Protection continues for surges below 20kA (8/20μs) after detection.
• The ground terminal, mounting feet, and DIN rail are insulated.
• The rated current (maximum load current) is 200mA.
• It supports both wall and DIN rail mounting.

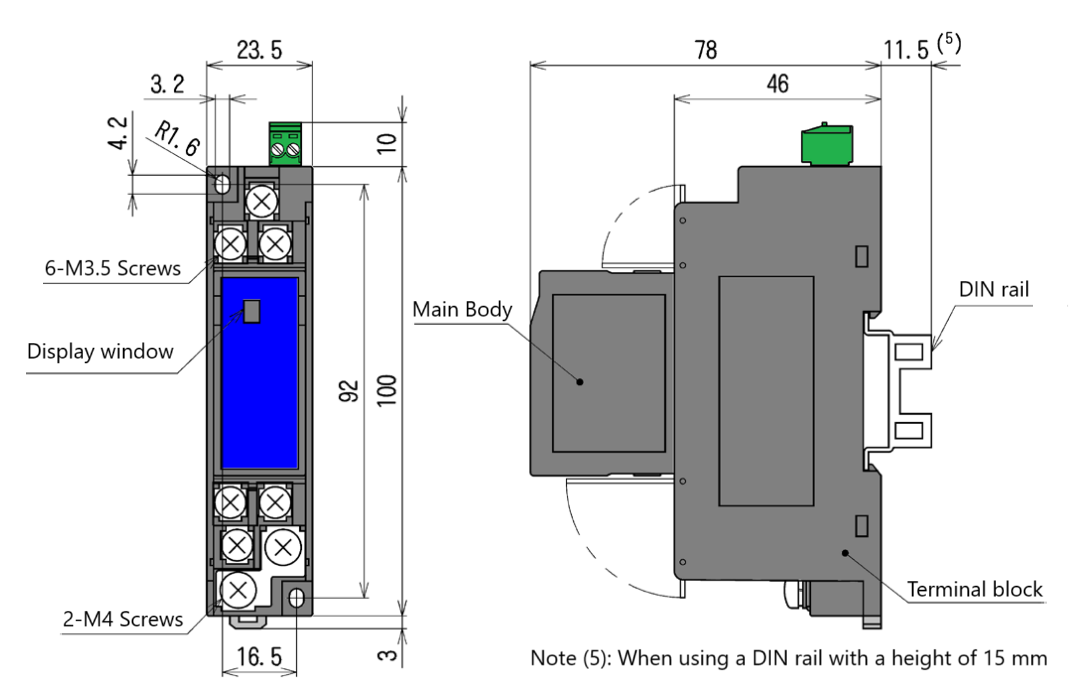

External Dimensions Drawing (Unit : mm)
